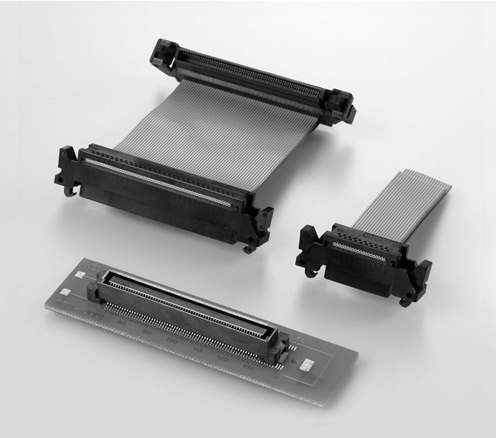

IDC connector for flat cables (#30 AWG). The board to cable connectors of the 8622E series provide for the connection of two overlaid flat cables with 0.635mm pitch. KEL’s unique Ejector mechanism has also been integrated into the connectors in order to facilitate reliable connection and simple disconnection. The 8622E series connectors have been molded so as to prevent incorrect connector insertion, and they also offer significant levels of durability under twisting. Not withstanding the compact nature of these connectors, their highly reliable design also boasts an effective coupled length of 1.4mm: furthermore, the products of the 8622E series are fully compliant with the RoHS directive.

  • Highly reliable design with effective contact displacement of 1.4mm (0.055″).
  • IDC for 0.635mm (0.025″) flat ribbon cable (#30 AWG).
    *The connector is applicable to two overlaid flat cables.
  • Connectors with the Eject-Lock mechanism, allowing one-handed insertion and release.
  • Easy and secure connection can be achieved with KEL’S original termination form.
  • PCB side connector (Pulg, 8630E series) is able to mate with 8601 series.
  • Coplanarity of 0.1mm (8630E).

Insulator material

8622E: Glass-filled Nylon 66 (UL94V-0), Black
8630E: Glass-filled LCP (UL94V-0), Black

Contact material

 Copper alloy

Contact plating

 Gold over Nickel

Current rating

 0.5A per contact

Contact resistance

 50mΩ max.

Dielectric withstanding voltage

 200V AC for 1 minute

Insulation resistance

 100MΩ min. at 250V DC

Operating temperature

 -40°C to +85°C

Applicable cable

 #30 AWG (7/0.102) Flat ribbon cable
