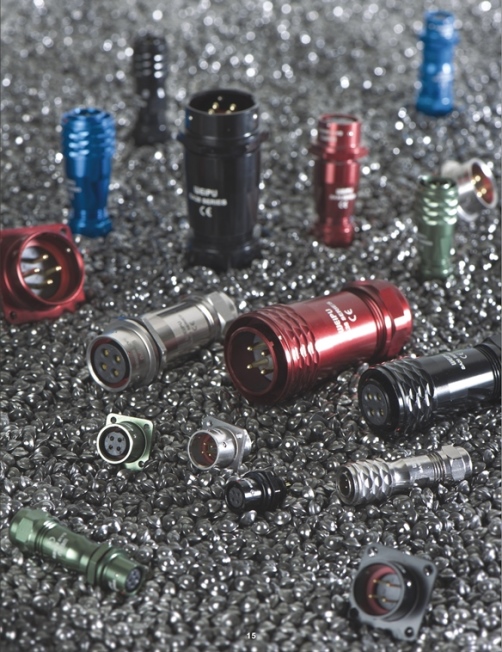

IP67 waterproof connectors, panel mounting hole size 6-8-10-12-16-20-28mm, design for water-proof and outdoor applications, designed for outdoor and under water harsh environment.
Applications: industrial, power and signal, outdoor LED / lights, outdoor security cameras, marine equipment and any outdoor environment applications.

Features:

  •      IP rating: IP67
  •     CE, RoHS approval
  •     Shell material: Anodized aluminium
  •     Coupling: Push-pull
  •     Nr. of contact: SA6: 3-5 / SA8: 2-8 / SA10: 2-5 / SA12: 2-9 / SA16: 2-10 / SA20: 2-12 / SA28: 2-26 gold-plated contacts
  •     Termination: Solder, screw & crimp terminations
  •     Current (A): 3 – 50 Amps
  •     Mating cycle: 500
  •     Temperature range: -40°C / +85°C
  •     Can be cable-to-panel and cable-to-cable
