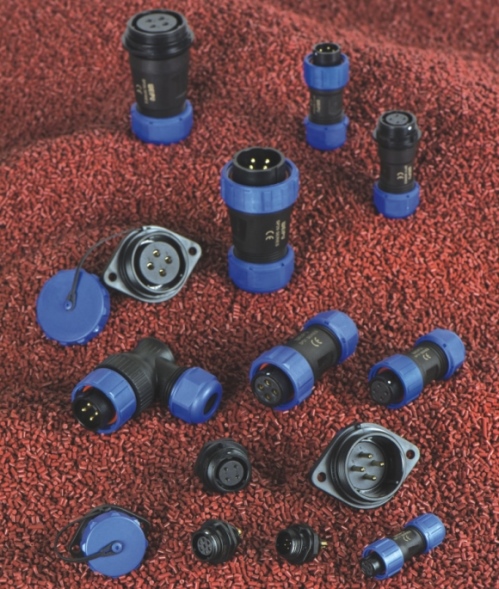

The SP11, SP13, SP17, SP21 and SP29 series are all IP68 waterproof connectors, threaded coupling, panel mounting hole size 11-13-17-21-29mm, designed for water-proof outdoor applications and under water harsh environment. The connectors can be used for both cable to cable (in-line) or cable to panel-mount connectors. Each side can be male or female contact (Plug or Socket versions). The IP68 sealing caps are available on both cable connector and panel connector.
Applications: These IP68 connectors are ideal for indoor/outdoor and under water hush conditions, such as outdoor led lighting, LED panel screens, outdoor security cameras, solar energy inverter, medical device, communications, marine equipment, industrial, control systems, measuring equipment and testing equipment for data signal and power.
Features:
- IP rating: IP68
- CE, RoHS approval
- Coupling: threaded
- No. of contact: SP11: 2-5 / SP13: 2-9 / SP17: 2-10 / SP21: 2-12 / SP29: 2-26 gold-plated contacts
- Solder, screw & crimp terminations
- Current (A): 3 – 50 Amps
- Mating cycle: 500
- Temperature range: -40°C / +85°C
- Can be cable-to-panel and cable-to-cable
- Overmolded Cable Assemblies
|
