The low jitter TCXO now also available in a 7.0 x 5.0mm package !!

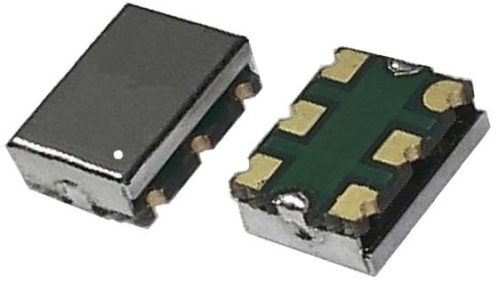

This 7.0 x 5.0 mm 6-pad Temperature Compensated Crystal Oscillator (TCXO) with low current consumption and low jitter performance is available with CMOS, LVPECL or LVDS output logic.

Features:

  • Frequency range from 10 MHz to 1450 MHz
  • Integrated Phase Jitter: 0.8 ps typical
  • Low current consumption: 24mA to 50mA Max (Frequency dependent)
  • Operating temperature ranges from -20°C to +70°C up to -40°C to +85°C
  • Frequency stability vs Temp. down to 0.5 ppm
  • All product types are available with following supply voltages: 2.5V and 3.3V
  • Available output logics: CMOS, LVPECL and LVDS
  • Shock and Vibration: MIL-STD-202F approved
