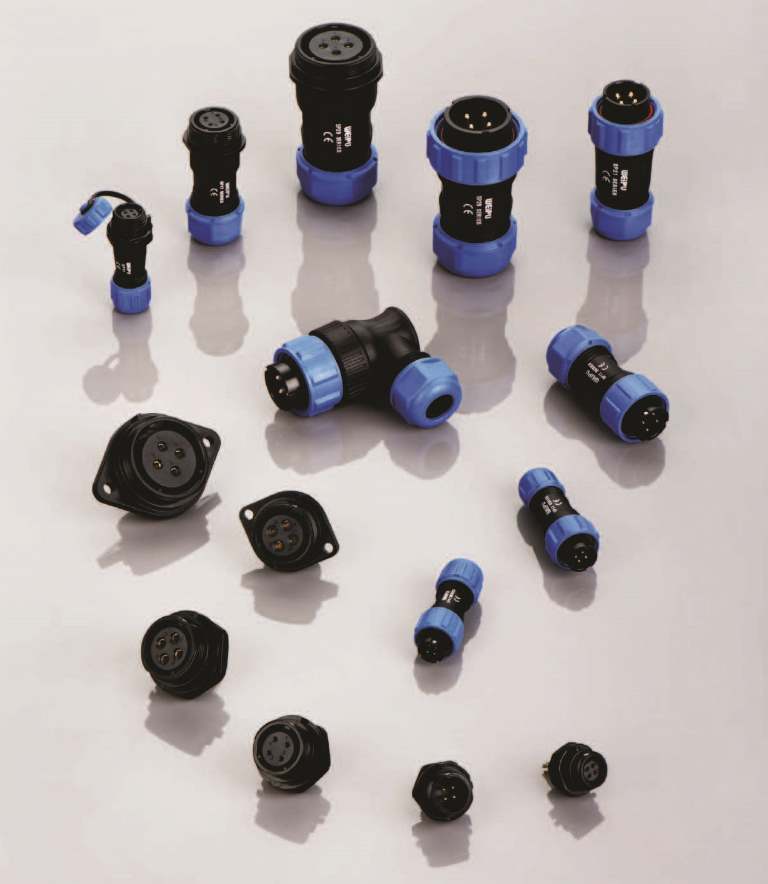

The SY11, SY13, SY17, SY21 and SY29 series are IP67 waterproof connectors, bayonet coupling. They have the same electric spec. as SP series but IP67. The panel mounting hole size are 13-17-21mm, design for water-proof, indoor and outdoor applications, and under water harsh environment. It is designed for applications that need quick locking and frequent plug on/off mating. The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be made male or female contact, (Plug or socket versions), currently the IP67 sealing caps are available only for panel connector.
Applications: industrial, power and signal, outdoor LED / lights, outdoor security cameras, marine equipment and any outdoor environment applications.

Features:

·         IP rating: IP67

·         CE, RoHS approval

·         Shell material: Nylon66, Fire resistant V-0

·         Coupling: Bayonet

·         No. of contact: SY11: 2-5 / SY13: 2-9 / SY17: 2-10 / SY21: 2-15 / SY29: 2-35 gold-plated contacts

·         Termination: Solder, screw & crimp terminations

·         Rated Current (A) and V: 3 – 30 Amps / 125 – 500 (AC,V)

·         Mating cycle: 500

·         Temperature range: -40°C / +85°C

·         Can be cable-to-panel and cable-to-cable
