Socket your BGA624 using Extreme Temperature Socket with Superior Electrical Performance

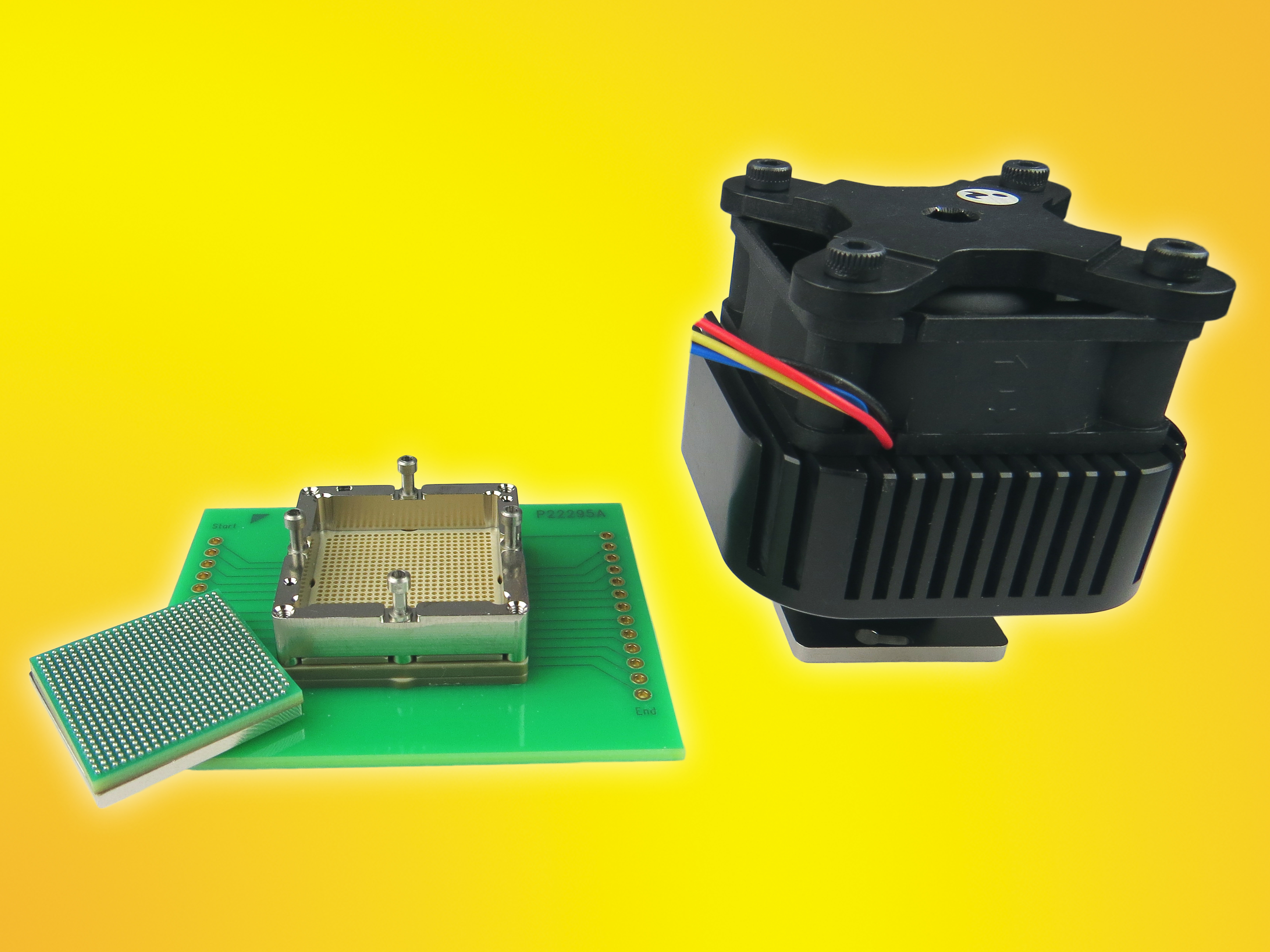

Ironwood Electronics recently introduced a new socket addressing high performance requirements for Burn-in and Test applications – SBT-BGA-6562. The contactor is a stamped spring pin with 30 gram actuation force per ball and cycle life of 125,000 insertions. The self inductance of the contactor is 0.95 nH, insertion loss of < 1 dB at 18.1 GHz and capacitance 0.284pF. The current capacity of each contactor is 3 amps (free air). Socket temperature range is -55C to +180C. Socket features a floating guide for precise ball to pin alignment. Socket also features 30 watt heat sink screw for power dissipation. The specific configuration of the package to be tested in the SBT-BGA-6562 is BGA, 21x21mm body size, 0.8mm pitch and 25×25 ball array. To use, drop IC into the socket, place compression plate and swivel the lid. Down force is applied by turning heat sink compression screw with axial fan. This socket can be used for hand test and quick turn custom burn-in applications with the most stringent requirements.
