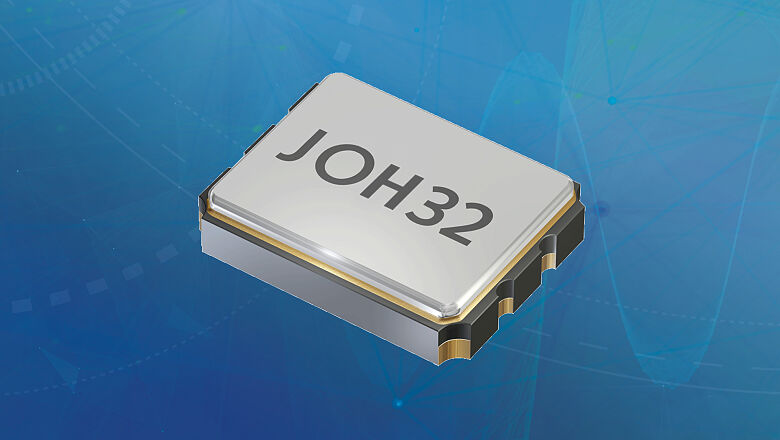

DEVELOPED FOR HIGH-PERFORMANCE COMPUTING APPLICATIONS: THE JOH32
The JOH32 integrates seamlessly into our portfolio of HCSL oscillators. Available in two versions the quartz oscillator stands out for its differential output and very low jitter values. The JOH32 is available in two versions: the standard and IP versions.
In the course of digitalization, companies are increasingly focusing on high computing and processing power. For this reason, requirements are placed on fast and error-free data transmission between devices and systems. In this context, phase noise has a significant influence on the error rate of high-frequency communication systems. The lower the phase noise, the more stable the output signal.
Therefore, the Jauch Quartz GmbH introduces a quartz oscillator that meets the requirements of this field: the JOH32. The oscillator with a differential HCSL output convinces with very low jitter values. In addition, the JOH32 is available in two versions, a standard version and an IP version. IP stands for “Improved Phase Noise” and means additional low phase noise.
The crystal oscillator is available in frequencies from 13.50 to 160 MHz and supply voltage from 1.5 to 3.3 volts. The ultra-compact package dimension of 3.2 x 2.5 x 0.95 mm allows integration on almost any circuit.
This makes the JOH32 suitable for use in data centers or high-performance computing. These areas rely on accelerators because of their high level of data exchange. The oscillator is compliant with PCIe5 as well as previous PCIe generations. In addition, the very low power consumption makes it easy to implement as a highly efficient solution for servers, switches and storage devices.
The JOH32 is 100 percent lead-free and REACH and RoHS compliant. There are also no conflict materials used in production.
Application areas:
The JOH32 is suitable for all application areas where high-speed data transmission is required, such as data centers and high-performance computing. Other areas include:
- High-speed networks and computers
- Network infrastructure, servers, switches
- Storage devices
- Frequency controlling of FPGAs (Field Programmable Gate Array) and GPUs (Graphics Processing Unit)
- Support for PCIe differential signal levels (Peripheral Component Interconnect Express) up to PCIe 5
The data sheet with all further product details can be found here.
