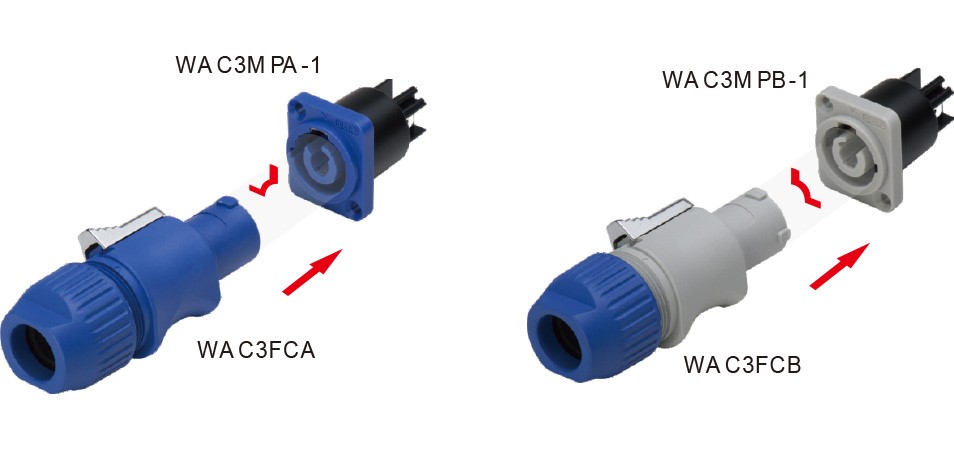

The WAC3 connector is our new connector, bayonet coupling. The panel socket is made of PC,
The shell diameter is 9-13mm (the panel hole cutout diameter is 23 .5mm)，
The connectors are used for cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions).

1) cable outer diameter : 9-13mm
2) rated current and V : 20A , 250V
3) IP rating : IP65
4) CE, ROHS approval

Material and spec:

  • Coupling: Bayonet
  • Shell Plug: Nylon66 Socket: PC
  • Contact material: Brass with silver plating
  • Rated current: (A) 20
  • Rated voltage: (AC/V) 250
  • Test voltage: (AC.V) 1 min 2500
  • Insulation resistance: (MΩ) 2000
  • Mating cycle: 1000
  • Temperature range: -40℃~ + 85℃
  • IP range: IP65
  • Termination Plug: screw, Rceptacle: 3/16″ flat tab terminals
