Socket and Test your 4.2×3.8mm BGA device using extreme temperature socket

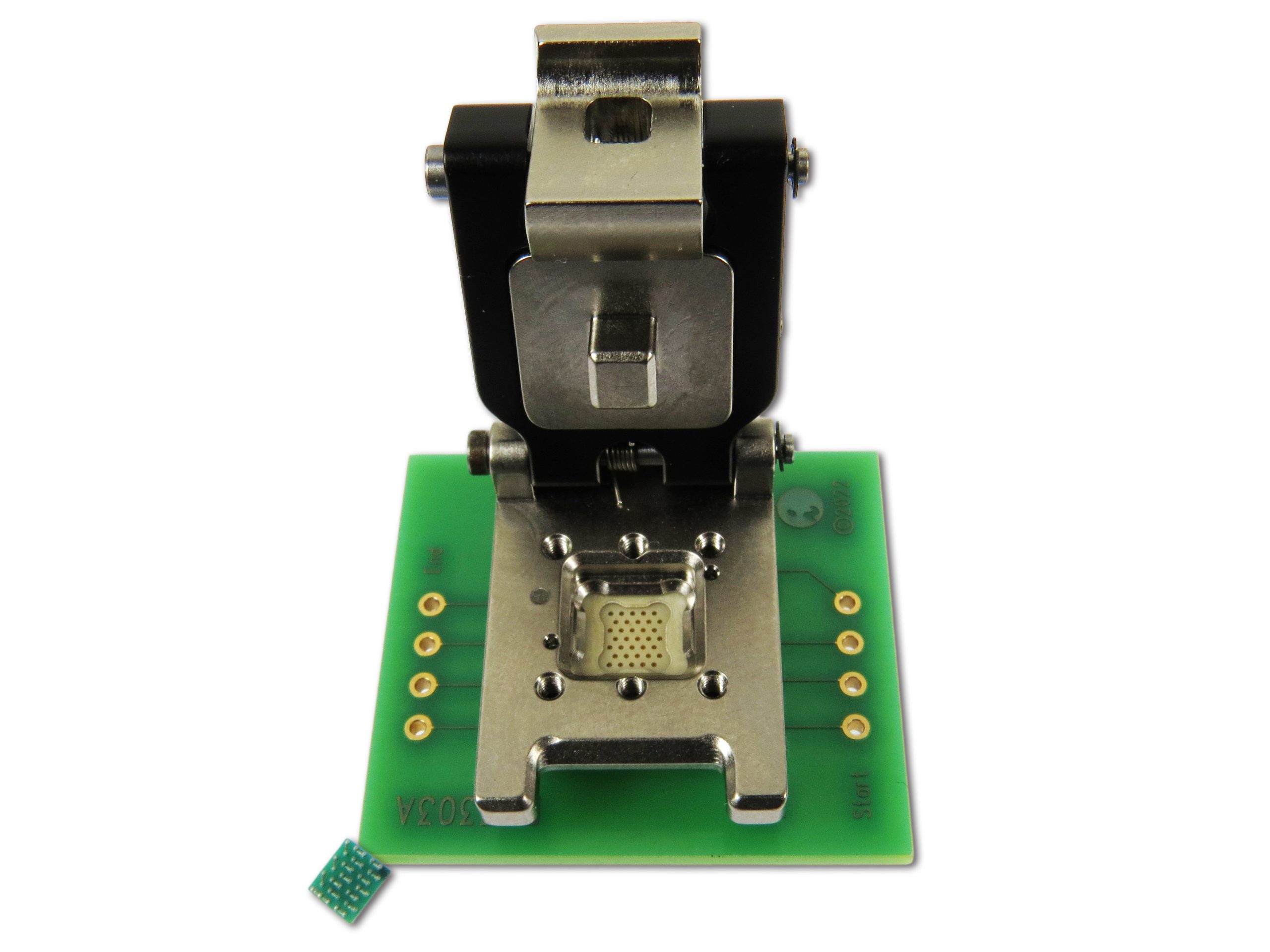

Ironwood Electronics recently introduced a new Stamped spring pin socket addressing high performance requirements for testing BGA35 – CBT-BGA-7525. The contactor is a stamped spring pin with 8 gram actuation force per ball and cycle life of 75,000 insertions. The self inductance of the contactor is 0.92 nH, insertion loss < 1 dB at 24.7 GHz and capacitance 0.058pF. The current capacity of each contactor is 1 amps at 20C temperature rise. Socket temperature range is -55 °C to +180 °C. Socket features a clamshell lid design for ease of chip replacement in production environment. It also has an integrated compression plate for vertical force actuation without distorting device position. The specific configuration of the package to be tested in the CBT-BGA-7525 is a BGA, 4.2×3.8mm, mixed pitch 7×5 array with 35 balls. The socket is mounted using supplied hardware on the target PCB with no soldering, and uses the smallest footprint in the industry. The smallest footprint allows inductors, resistors and decoupling capacitors to be placed very close to the device for impedance tuning. To use, place BGA device into the socket and close the lid by snapping to the latch. Vertical force is applied by the integrated spring. This socket can be used for quick device screening, device characterization at extreme temperatures as well as final production test.
