2.1mm pitch crimp connector “FK series”

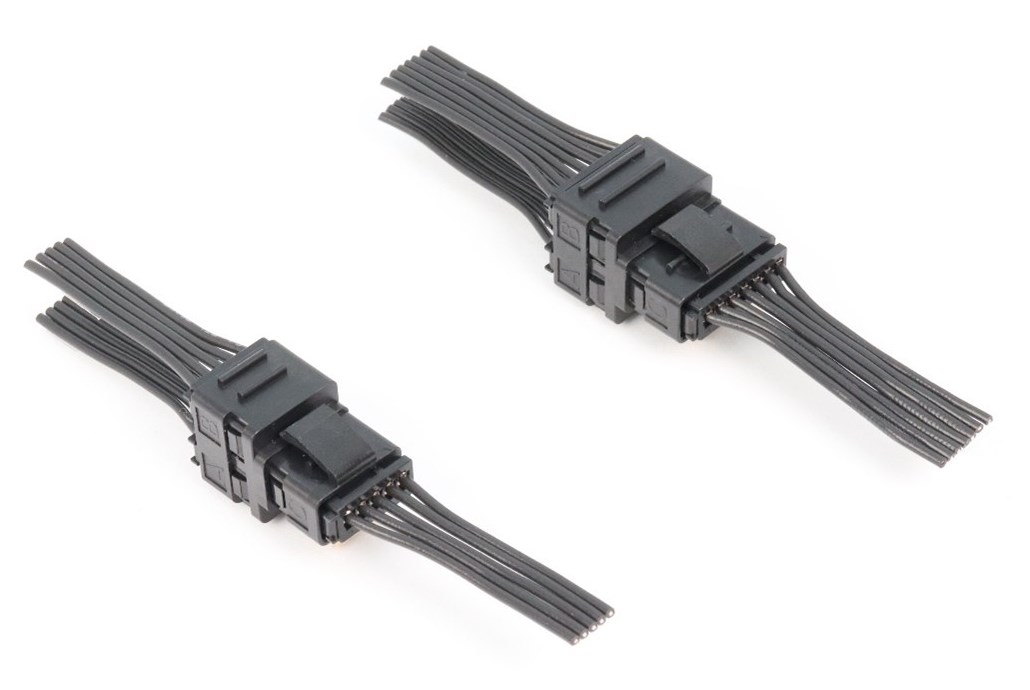

Left side of photo: 5 poles
Right side of photo: 7 poles
<Product overview>
– 2.1mm pitch crimp connector ideal for applications such as manipulators, robots, and mounters.
※For more information please refer to the <Application> section !!
– This product supports a method of connecting by branching to multiple locations (multi-drop method), contributing to wiring savings.
– Has a structure that allows current branching, and can be partially removed for easy maintenance.
– Flat structure that does not create unevenness at the locking point when mated, avoiding contact with other wiring or getting caught.
– In order to prevent incorrect mating during insertion, we use technology to give each housing a different shape (keying shape).
– Panel mounting and cable tie fixing are also available. (Width for cable tie: 2.5mm)
– Applicable cables are planned to be AWG #22 to 28.
– The working temperature is -55℃ to +105℃.
– We have 5 and 7 number of contacts available.
“*If you would like other number of contacts or samples, please contact our sales representative.”

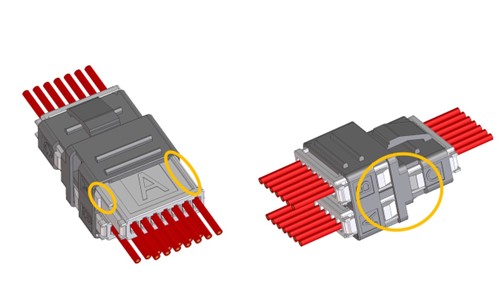

Keying shape to prevent incorrect mating and flat locking structure to avoid contact with wiring
*This product is based on black and may differ from the actual color.
<Product specifications>
Insulator materials: PBT glass-filled filled UL94-V0 material Color: Black
– Contact material: Copper alloy
– Contact contact plating: Nickel plating base
(Contact part) gold-plated finish
(Crimp part) Nickel plated finish
current rating: 2.5A (when using AWG28 wire)
3.0A (when using AWG26 wire)
3.5A (when using AWG24 wire)
4.0A (when using AWG22 wire)
contact resistance: 10mΩ or less
dielectric withstand voltage: AC 1,000V, 5 minutes
insulation resistance: DC 500V, 1,000MΩ or more
– Insertion/removal durability: 50 times
operating temperature: -55℃~+105℃
<Application>
・Industrial equipment market (manipulators, robots, mounters, various manufacturing equipment using servo motors, etc.)
・Medical equipment market (medical robots, etc.)
*Please note that this is a product under development, so specifications, shape, and series name may change without notice.
