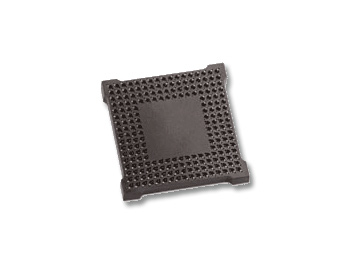

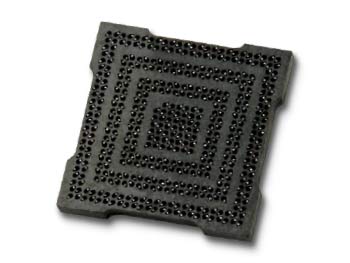

High-performance, 0.65 mm+ pitch net zero package footprint engineering test sockets for BGA style packaged devices over 200 ball count and for over 300 the G80 LIF to reduce insertion forces. Technical Documents Grypper G80 Specification Sheet Grypper G80 LIF Grypper G80 0.45 Ball 0.8 Pitch RF Characterization Summary Grypper G80 0.50 Ball 0.8 and […]
High Performance, Industry Standard Zero Footprint Sockets for 0.35 + pitch devices. Technical Documents Zero Footprint SMT Spring Pin Sockets Product Bulletin Ironwood Electronics Zero footprint (ZFP) sockets is a device size or near device size footprint test socket incorporating industry standard high performance spring pins. Ironwood can design a socket to work with […]
Socket and Test your 19x19mm BGA device using extreme temperature socket Ironwood Electronics recently introduced a new Stamped spring pin socket addressing high performance requirements for testing BGA780 – CBT-BGA-7054. The contactor is a stamped spring pin with 31 gram actuation force per ball and cycle life of 125,000 insertions. The self inductance of the […]
Industry’s Smallest Footprint Up to 500,000 insertions Bandwidth up to 50+ GHz 2.5mm per side larger than IC Ball Count over 5000, Body Size 2 – 100mm < 25 mOhm Contact Resistance -55°C to +180°C 4A to 8A @80°C BGA, LGA, QFN, QFP and SOIC Optional heatsinking to 400W Six different Lid Options Quick Turn […]
Same Size as Device True Zero Footprint Pluggable approx. 100 Insertions 0.35mm to 1.27mm Pitch ©2020 Ironwood Electronics. All rights reserved
High Speed Microwave Applications Contact resistance < 30 mOhms Bandwidth > 94GHz @-1 dB Current 5.4A @ 20C rise Force 25-50 grams per contact Operating temperature -55 to + 160 °C Insertion / Extraction cycles > 1000 Contact lenght (compressed): 0.08mm Compliance: 0.15mm ©2020 Ironwood Electronics. All rights reserved
Industry’s Smallest Footprint Up to 500,000 insertions ARM Bandwidth to 75 GHz 2.5mm per side larger than IC Ball Count over 4400, Body Size 2 – 100mm < 25 mOhm Contact Resistance throughout life Five different contactor options Optional heatsinldng to 300W Six different Lid Options ©2020 Ironwood Electronics. All rights reserved
Giga-snaP BGA SMT Adapters allow affordable socketing Ultra low insertion force GHz bandwidth Same CTE as PCB Solder’s same as IC Up to 2500 pins 0.5mm to 1.27mm pitch Same size as IC ©2020 Ironwood Electronics. All rights reserved
Industry’s Smallest Footprint Up to 500,000 insertions Bandwidth up to 75 GHz 2.5mm per side larger than IC Ball Count over 4400, Body Size 2 – 100mm Five different contactor options Optional heatsinking to 400W Six different Lid Options < 25 mOhm Contact Resistance throughout life ©2020 Ironwood Electronics. All rights reserved
Socket and Test your 13x13mm BGA device using extreme temperature socket Ironwood Electronics recently introduced a new Stamped spring pin socket addressing high performance requirements for testing BGA361 – CBT-BGA-7056. The contactor is a stamped spring pin with 31 gram actuation force per ball and cycle life of 125,000 insertions. The self inductance of the […]
