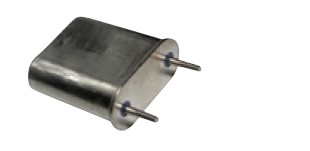

48U Series – Thru-Hole Crystal Quartz

Features:

  • High Precision availability
  • Wide Frequency Range
  • Applications: Telecommunication equipment,…
  • Frequency Range: 0.8 MHz ~ 200 MHz / 0.8 MHz +Fundamental / 15.0 MHz ~ 100.0 MHz 3rd-overtone / 50.0 MHz ~ 160.0 MHz 5th-overtone / 80.0 MHz ~ 200.0 MHz 7th-overtone
  • Dimension: 19.4 x 8.95 x 19.8 mm

48U Series

Categories: , Tags: , , , , ,

Description

HM International manufacture a wide range of quartz crystals to suit virtually all applications, including high frequency, low frequency and small SMD miniature packages. We also stock crystals in most popular package styles, frequencies and specifications for quick delivery.

Picture Product Dimensions (mm) Frequency Range
49u 49U 11.0 x 4.7 x 13.5 mm
11.0 x 4.7 x 11.0 mm		 1.0 – 200 MHz
50u 50U 11.0 x 4.7 x 13.5 mm
11.0 x 4.7 x 11.0 mm		 1.0 – 200 MHz
49s 49S 11.0 x 4.7 x 3.5 mm 3.2 – 70 MHz
49ss 49SS 11.0 x 4.7 x 2.5 mm 3.2 – 70 MHz
um1 UM1 7.8 x 3.3 x 8.0 mm 4.000 – 200 MHz
um5 UM5 7.8 x 3.3 x 6.0 mm 10.000 – 200 MHz
48u 48U 19.4 x 8.95 x 19.8 mm 0.8 – 200 MHz
51u 51U 19.4 x 8.95 x 19.8 mm 0.8 – 200 MHz
tb39 TB39 3.0 x 9.0 mm Cylindrical 3.5 – 70.0 MHz
