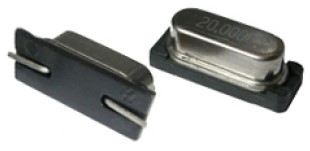

49SM Series Surface-Mount Crystal Quartz

Features:

  • SMD package, 2 pad version
  • Low cost, short delivery.
  • Wide Frequency Range
  • Applications: Computers, Modem, Microprocessor Crystal,…
  • Frequency Range: 3.2 MHz ~ 70 MHz / 3.2 MHz ~ 48.0 MHz Fundamental – AT-cut / 27.0 MHz ~ 70.0 MHz 3rd-overtone – AT-cut / 24.0 MHz ~ 54.0 MHz Fundamental – BT-cut
  • Dimension: 11.4 x 4.7 x 4.2 mm

49SM Series

Categories: , Tags: , , , , , ,

Description

HM International manufacture a wide range of quartz crystals to suit virtually all applications, including high frequency, low frequency and small SMD miniature packages. We also stock crystals in most popular package styles, frequencies and specifications for quick delivery.

Picture Product Dimensions (mm) Frequency Range
x16 X16 1.6 x 1.2 x 0.35 mm 24 – 60 MHz
x20 X20 2.0 x 1.6 x 0.50 mm 16 – 80 MHz
x25 X25 2.5 x 2.0 x 0.60 mm 12 – 80 MHz
x32 X32 3.2 x 2.5 x 0.70 mm 8 – 200 MHz
x53 X53 5.0 x 3.2 x 0.9 mm 8 – 150 MHz
x532 X532 5.0 x 3.2 x 1.2 mm 8 – 80 MHz
x63 X63 6.0 x 3.5 x 1.1 mm 7 – 160 MHz
x632 X632 6.0 x 3.5 x 1.1 mm 8 – 50 MHz
x75 X75 7.0 x 5.0 x 1.2 mm 6 – 160 MHz
49SSM 49SSM 11.4 x 4.7 x 3.2 mm 3.2 – 70 MHz
49SM 49SM 11.4 x 4.7 x 4.2 mm 3.2 – 70 MHz
49SX3 49SX3 12.9 x 4.5 x 4.8 mm 3.2 – 70 MHz
49MJ 49MJ 13.5 x 11.0 x 5.3 mm
11.0 x 11.0 x 5.3 mm		 1.8432 – 200 MHz
UM1MJ UM1MJ 8.0 x 7.8 x 3.5 mm 4.000 – 200 MHz
UM5MJ UM5MJ 6.0 x 7.8 x 3.5 mm 10.000 – 200 MHz
