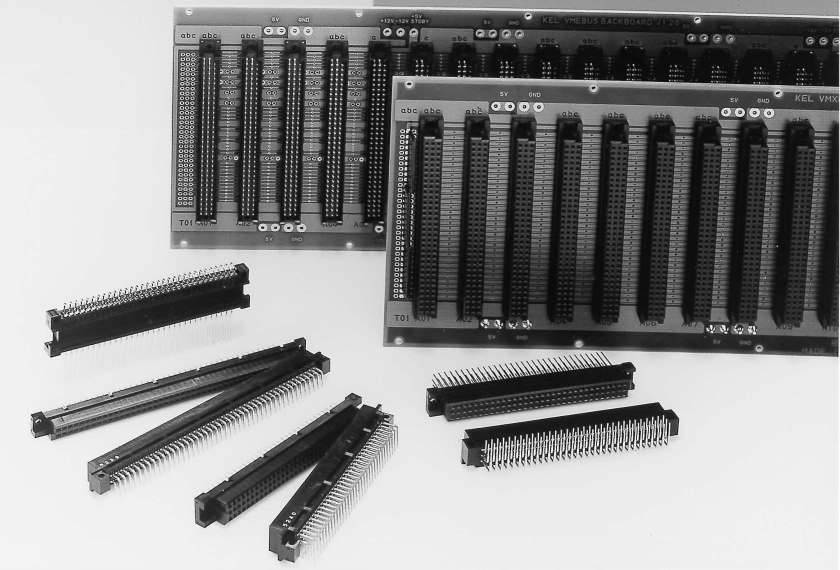

8300 · 8400 Series 2.54mm Pitch Connector conforms to standard DIN

▶ A total price advantage over card edge connector.
▶ Mating is easy and reliable due to unique contact design.
▶ Numerous variations are available.
▶ Horizontal, Vertical and Stacked mating combinations.
▶ Conforms to DIN 41612 standard and IEC 603-2 standard.
▶ The insulator material of PBT (polybutylene terephthalate) resin has superior chemical resistance characteristics.

Number of contacts: 32, 44, 48, 50, 64, 90, 96, 100pin

Type: 8300 Receptacle Standard DIN · PN.s: 8300-032-280-N, 8300-048-280-N, 8300-064-280-N, 8300-096-280-N, 8300-032-281-N, 8300-048-281-N, 8300-050-281-N, 8300-064-281-N, 8300-096-281-N

Type: 8400 Inverse DIN · PN.s: 8400-064-282-N, 8400-096-282-N

Type: 8330 Standard DIN (VA product) · PN.s: 8330-032-283-N, 8330-044-283-N, 8330-050-283-N, 8330-064-283-N, 8330-090-283-N, 8330-096-283-N, 8330-100-283-N

Type: 8440 Inverse DIN (VA Product), Flush mounting · PN.s: 8440-032-284-N, 8440-044-284-N, 8440-048-284-N, 8440-050-284-N, 8440-064-284-N, 8440-090-284-N, 8440-096-284-N, 8440-100-284-N

Type: 8301 Plug Standard DIN · PN.s: 8301-032-290-N, 8301-048-290-N, 8301-050-290-N, 8301-064-290-N, 8301-096-290-N

Type: 8311 Standard DIN, Flush mounting · PN.s: 8311-032-290-N, 8311-048-290-N, 8311-050-290-N, 8311-064-290-N, 8311-096-290-N

Type: 8401 Inverse DIN · PN.s: 8401-064-292-N, 8401-096-292-N, 8401-064-293-N, 8401-096-293-N

Type: 8331 Standard DIN (VA product) · PN.s: 8331-032-294-N, 8331-044-294-N, 8331-048-294-N, 8331-050-294-N, 8331-064-294-N, 8331-090-294-N, 8331-096-294-N, 8331-100-294-N

Type: 8341 Standard DIN, Flush mounting (VA product) · PN.s: 8341-032-294-N, 8341-044-294-N, 8341-048-294-N, 8341-050-294-N, 8341-064-294-N, 8341-090-294-N, 8341-096-294-N, 8341-100-294-N

Type: 8431 Inverse DIN (VA Product) · PN.s: 8431-032-294-N, 8431-044-294-N, 8431-048-294-N, 8431-050-294-N, 8431-064-294-N, 8431-090-294-N, 8431-096-294-N, 8431-100-294-N

8300 – 8400 SERIES
