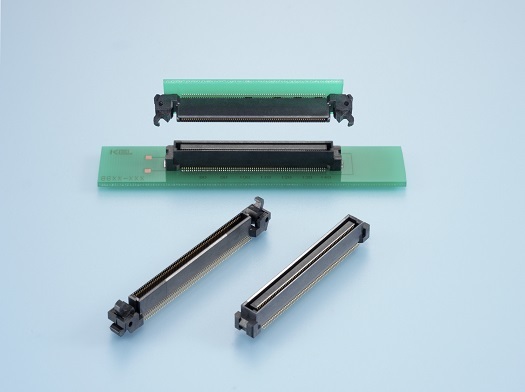

8602E Series 0.635mm Pitch Connector Ejector Type

▶ Board-to-board connector including a locking mechanism for a mated connector.
▶ High reliable design with effective mating length of 1.4mm (0.055’’).
▶ Three sizes : 60, 140 and 160 pins.
▶ Designed to prevent mis-insertion.
▶ Coplanarity of 0.1mm.
▶ Provided with or without a Pick & Place cap.
▶ Stacked mating height of 8mm.

Type: 8602E – Receptacle, Ejector type · PN’s: 8602E-060S, 8602E-140S, 8602E-160S, 8602E-060S-P, 8602E-140S-P, 8602E-160S-P

Type: 8630E – Plug · PN’s: 8630E-060S, 8630E-140S, 8630E-160S, 8630E-060S-P, 8630E-140S-P, 8630E-160S-P

8602E Series
