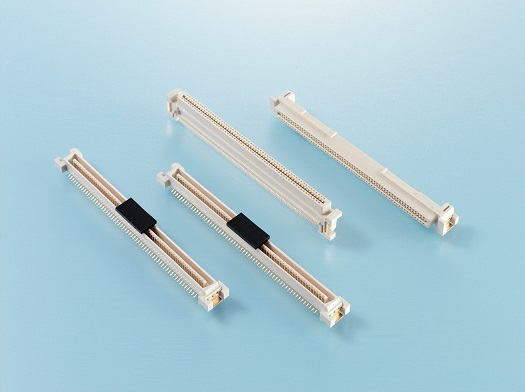

87 Series 1.0mm Pitch Connector

▶ Low profile (Stacked height : 5mm).
▶ Coplanarity 0.1mm, Skew ±0.1mm.
▶ Horizontal, Vertical and Stacked mating combinations.
▶ SMT retention clips reduce the stress on SMT lead pins.
▶ 75% smaller than existing half pitch connectors.
▶ Positioning posts for placement by hand.

Number of contacts: 30 pin, 50 pin, 80 pin, 100 pin, 120 pin (excl. S type)

Type: 87BFN Receptacle · PN’s: 87BFN-030S-F, 87BFN-050S-F, 87BFN-080S-F, 87BFN-100S-F, 87BFN-120S-F, 87BFN-030S-1F, 87BFN-050S-1F, 87BFN-080S-1F, 87BFN-100S-1F, 87BFN-120S-1F, 87BFN-030R-3F, 87BFN-050R-3F, 87BFN-080R-3F, 87BFN-100R-3F, 87BFN-120R-3F

Type: 87BMN Plug · PN’s: 87BMN-030S-F, 87BMN-050S-F, 87BMN-080S-F, 87BMN-100S-F, 87BMN-120S-F, 87BMN-030S-1F, 87BMN-050S-1F, 87BMN-080S-1F, 87BMN-100S-1F, 87BMN-120S-1F, 87BMN-030R-3F, 87BMN-050R-3F, 87BMN-080R-3F, 87BMN-100R-3F, 87BMN-120R-3F

87 Series
