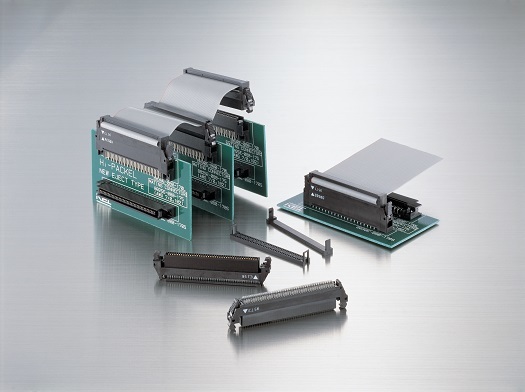

8825E Series 1.27mm Pitch Connector for 0.635mm Pitch Flat Cable

▶ With a completely-independent two-point contact system, a stable contact pressure is maintained at all times.
▶ Low insertion and withdrawal force.
▶ Equipped with the Eject-Lock mechanism, it allows one-handed insertion and release.
▶ The double blade-spring , sandwich mechanism prevents disconnection of cables.
▶ Possible to make Daisy chain assembllies.

Number of contacts: 20pin, 26pin, 30pin, 32pin, 34pin, 40 pin, 50pin, 60pin, 68pin, 80 pin, 100 pin

Type: 8825E Receptacle (Cable side connector) with strain relief

PN’s: 8825E-020-175-F, 8825E-026-175-F, 8825E-030-175-F, 8825E-032-175-F, 8825E-034-175-F, 8825E-040-175-F, 8825E-050-175-F, 8825E-060-175-F, 8825E-068-175-F, 8825E-080-175-F, 8825E-100-175-F, 8825E-020-175D-F, 8825E-026-175D-F, 8825E-032-175D-F, 8825E-034-175D-F, 8825E-040-175D-F, 8825E-050-175D-F, 8825E-060-175D-F, 8825E-068-175D-F, 8825E-080-175D-F, 8825E-100-175D-F

Type: 8825R without strain relief

PN’s: 8825R-020-175-F, 8825R-026-175-F, 8825R-030-175-F, 8825R-032-175-F, 8825R-034-175-F, 8825R-040-175-F, 8825R-050-175-F, 8825R-060-175-F, 8825R-068-175-F, 8825R-080-175-F, 8825R-100-175-F, 8825R-020-175D-F, 8825R-026-175D-F, 8825R-030-175D-F, 8825R-032-175D-F, 8825R-034-175D-F, 8825R-040-175D-F, 8825R-050-175D-F, 8825R-060-175D-F, 8825R-068-175D-F, 8825R-080-175D-F, 8825R-100-175D-F

Type: 8830E Plug (PCB side connector) without hooks

PN’s: 8830E-020-170S-F, 8830E-026-170S-F, 8830E-030-170S-F, 8830E-032-170S-F, 8830E-034-170S-F, 8830E-036-170S-F, 8830E-040-170S-F, 8830E-050-170S-F, 8830E-060-170S-F, 8830E-068-170S-F, 8830E-080-170S-F, 8830E-100-170S-F, 8830E-020-170L-F, 8830E-026-170L-F, 8830E-030-170L-F, 8830E-032-170L-F, 8830E-034-170L-F, 8830E-036-170L-F, 8830E-040-170L-F, 8830E-050-170L-F, 8830E-052-170L-F, 8830E-060-170L-F, 8830E-068-170L-F, 8830E-080-170L-F, 8830E-100-170L-F, 8830E-020-170SD-F, 8830E-026-170SD-F, 8830E-030-170SD-F, 8830E-032-170SD-F, 8830E-034-170SD-F, 8830E-036-170SD-F, 8830E-040-170SD-F, 8830E-050-170SD-F, 8830E-052-170SD-F, 8830E-060-170SD-F, 8830E-068-170SD-F, 8830E-080-170SD-F, 8830E-100-170SD-F, 8830E-020-170LD-F, 8830E-026-170LD-F, 8830E-030-170LD-F, 8830E-032-170LD-F, 8830E-034-170LD-F, 8830E-036-170LD-F, 8830E-040-170LD-F, 8830E-050-170LD-F, 8830E-052-170LD-F, 8830E-060-170LD-F, 8830E-068-170LD-F, 8830E-080-170LD-F, 8830E-100-170LD-F

Type: 8831E with hooks (Right angle only)

PN’s: 8831E-020-170L-F, 8831E-026-170L-F, 8831E-030-170L-F, 8831E-032-170L-F, 8831E-034-170L-F, 8831E-036-170L-F, 8831E-040-170L-F, 8831E-050-170L-F, 8831E-052-170L-F, 8831E-060-170L-F, 8831E-068-170L-F, 8831E-080-170L-F, 8831E-100-170L-F, 8831E-020-170LD-F, 8831E-026-170LD-F, 8831E-030-170LD-F, 8831E-032-170LD-F, 8831E-034-170LD-F, 8831E-036-170LD-F, 8831E-040-170LD-F, 8831E-050-170LD-F, 8831E-052-170LD-F, 8831E-060-170LD-F, 8831E-068-170LD-F, 8831E-080-170LD-F, 8831E-100-170LD-F

8825E Series
