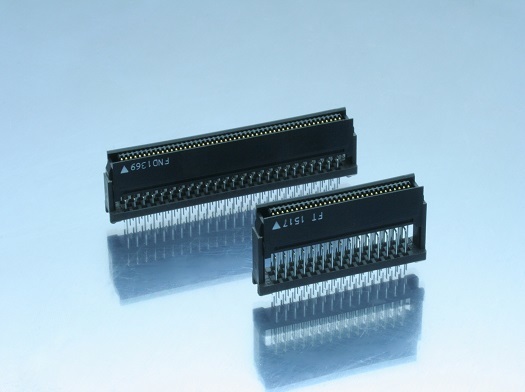

8832E-FS Series 1.27mm Pitch Connector Flexible Straight Type

▶ Standard stacked heights are 20, 24 and 30mm (0.787´´, 0.945´´, 0.181´´)
▶ Other stacked heights from 18mm (0.709´´) to 30mm (1.181´´) are available.
▶ 8832E Series will mate with 8800/8801/8802 Series.
▶ With a completely-independent two-point contact system, a stable contact pressure is maintained at all times.
▶ Low insertion force and withdrawal force.
Note) Does not mate with 8822E/8825E.

Number of contacts: 20pin, 30pin, 40pin, 50pin, 60pin, 80pin, 100pin

Type: 8832E Plug · PN’s: 8832E-020FS-N-F, 8832E-030FS-N-F, 8832E-040FS-N-F, 8832E-050FS-N-F, 8832E-060FS-N-F, 8832E-080FS-N-F, 8832E-100FS-N-F, 8832E-020FS-T-F, 8832E-030FS-T-F, 8832E-040FS-T-F, 8832E-050FS-T-F, 8832E-060FS-T-F, 8832E-080FS-T-F, 8832E-100FS-T-F, 8832E-020FS-Z-F, 8832E-030FS-Z-F, 8832E-040FS-Z-F, 8832E-050FS-Z-F, 8832E-060FS-Z-F, 8832E-080FS-Z-F, 8832E-100FS-Z-F, 8832E-020FSD-N-F, 8832E-030FSD-N-F, 8832E-040FSD-N-F, 8832E-050FSD-N-F, 8832E-060FSD-N-F, 8832E-080FSD-N-F, 8832E-100FSD-N-F, 8832E-020FSD-T-F, 8832E-030FSD-T-F, 8832E-040FSD-T-F, 8832E-050FSD-T-F, 8832E-060FSD-T-F, 8832E-080FSD-T-F, 8832E-100FSD-T-F, 8832E-020FSD-Z-F, 8832E-030FSD-Z-F, 8832E-040FSD-Z-F, 8832E-050FSD-Z-F, 8832E-060FSD-Z-F, 8832E-080FSD-Z-F, 8832E-100FSD-Z-F

8832E-FS Series
