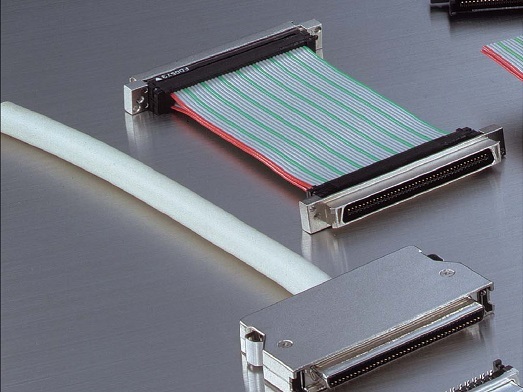

8840 · 8850 · 8855 Series 1.27mm Pitch I/O Connector

▶ Easy to use one-touch latch for models with 20 – 80 pins (100pin: Lock screw)
▶ With a completely-independent two-point contact system, a stable contact pressure is maintained at all times.
▶ Diecast cover controls EMI.
▶ D-shape housing prevents mis-insertion.
▶ Insulator prevents deformation of contact.
▶ Flat cable version of 8855 Series is available.

Number of contacts: 20, 28, 34, 50, 60, 68, 80, 100pin

Type: 8840 Receptacle (Cable side connector)

PN.s: 8840-020-174AD-F, 8840-028-174AD-F, 8840-034-174AD-F, 8840-050-174AD-F, 8840-060-174AD-F, 8840-068-174AD-F, 8840-080-174AD-F, 8840-100-174AD-F, 8840-020-174BD-F, 8840-028-174BD-F, 8840-034-174BD-F, 8840-050-174BD-F, 8840-060-174BD-F, 8840-068-174BD-F, 8840-080-174BD-F, 8840-100-174BD-F, 8840S-020-CVR, 8840S-028-CVR, 8840S-050-CVR, 8840S-060-CVR, 8840S-068-CVR, 8840S-080-CVR, 8840S-100-1-CVR, 8840S-100-2-CVR, 8840S-100-3-CVR

Type: 8850 Plug (PCB side connector)

PN.s: 8850-020-170SD-F, 8850-028-170SD-F, 8850-034-170SD-F, 8850-050-170SD-F, 8850-060-170SD-F, 8850-068-170SD-F, 8850-080-170SD-F, 8850-100-170SD-F, 8850-020-170LD-F, 8850-028-170LD-F, 8850-034-170LD-F, 8850-050-170LD-F, 8850-060-170LD-F, 8850-068-170LD-F, 8850-080-170LD-F, 8850-100-170LD-F, 8850-SR-01, 8850-SR-02, 8850-SR-03

Type: 8855 Plug (Cable plug)

PN.s: 8855-020-174AD-F, 8855-028-174AD-F, 8855-034-174AD-F, 8855-050-174AD-F, 8855-060-174AD-F, 8855-068-174AD-F, 8855-080-174AD-F, 8855-100-174AD-F, 8855-020-174BD-F, 8855-028-174BD-F, 8855-034-174BD-F, 8855-050-174BD-F, 8855-060-174BD-F, 8855-068-174BD-F, 8855-080-174BD-F, 8855-100-174BD-F, 8855-020-174FD-F, 8855-028-174FD-F, 8855-034-174FD-F, 8855-050-174FD-F, 8855-060-174FD-F, 8855-068-174FD-F, 8855-080-174FD-F, 8855-100-174FD-F, 8850-SR-01, 8850-SR-02, 8850-SR-03

8840 – 8850 – 8855 SERIES
