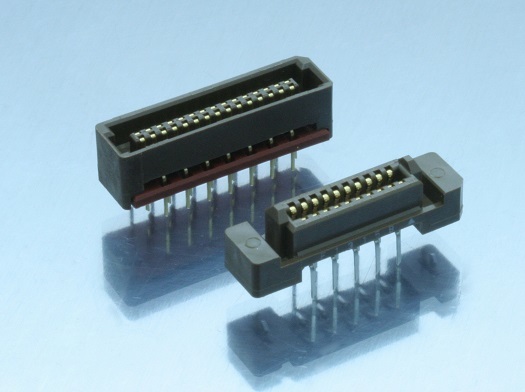

8900 Series 1.27mm Pitch Low Profile Connectors

▶ Highly reliable contact design with independent and synchronized spring.
▶ Low insertion and withdrawal force.
▶ With a guide mechanism, smooth mating can be achieved.
▶ Insulator protects the contacts from damage or breakage.
▶ PPS insulator offers high temperature resistance.
▶ Stacked mating heights of 7, 8, 9, 10 and 12mm (0.276, 0.315, 0.354, 0.394 and 0.472´´)
▶ Wide variations in the number of contacts (20, 30, 40, 50, 60, 80, 100 and 120 pins) are available.
▶ Audible “click”assures users of complete mating.
▶ Two types, with and without a flange, are available.
▶ 3 rows of terminals conserve board space. (Right angle type)

Type: 8901 Receptacle with flanges and hooks · PN’s: 8901-020-177S-A-F, 8901-030-177S-A-F, 8901-040-177S-A-F, 8901-050-177S-A-F, 8901-060-177S-A-F, 8901-080-177S-A-F, 8901-100-177S-A-F, 8901-120-177S-A-F, 8901-020-177S-B-F, 8901-030-177S-B-F, 8901-040-177S-B-F, 8901-050-177S-B-F, 8901-060-177S-B-F, 8901-080-177S-B-F, 8901-100-177S-B-F, 8901-120-177S-B-F, 8901-020-177S-D-F, 8901-030-177S-D-F, 8901-040-177S-D-F, 8901-050-177S-D-F, 8901-060-177S-D-F, 8901-080-177S-D-F, 8901-100-177S-D-F, 8901-120-177S-D-F, 8901-020-177SD-A-F, 8901-030-177SD-A-F, 8901-040-177SD-A-F, 8901-050-177SD-A-F, 8901-060-177SD-A-F, 8901-080-177SD-A-F, 8901-100-177SD-A-F, 8901-120-177SD-A-F, 8901-020-177SD-B-F, 8901-030-177SD-B-F, 8901-040-177SD-B-F, 8901-050-177SD-B-F, 8901-060-177SD-B-F, 8901-080-177SD-B-F, 8901-100-177SD-B-F, 8901-120-177SD-B-F, 8901-020-177SD-D-F, 8901-030-177SD-D-F, 8901-040-177SD-D-F, 8901-050-177SD-D-F, 8901-060-177SD-D-F, 8901-080-177SD-D-F, 8901-100-177SD-D-F, 8901-120-177SD-D-F

Type: 8903 without flanges and hooks · PN’s: 8903-020-177S-A-F, 8903-030-177S-A-F, 8903-040-177S-A-F, 8903-050-177S-A-F, 8903-060-177S-A-F, 8903-080-177S-A-F, 8903-100-177S-A-F, 8903-120-177S-A-F, 8903-020-177S-B-F, 8903-030-177S-B-F, 8903-040-177S-B-F, 8903-050-177S-B-F, 8903-060-177S-B-F, 8903-080-177S-B-F, 8903-100-177S-B-F, 8903-120-177S-B-F, 8903-020-177S-D-F, 8903-030-177S-D-F, 8903-040-177S-D-F, 8903-050-177S-D-F, 8903-060-177S-D-F, 8903-080-177S-D-F, 8903-100-177S-D-F, 8903-120-177S-D-F, 8903-020-177SD-A-F, 8903-030-177SD-A-F, 8903-040-177SD-A-F, 8903-050-177SD-A-F, 8903-060-177SD-A-F, 8903-080-177SD-A-F, 8903-100-177SD-A-F, 8903-120-177SD-A-F, 8903-020-177SD-B-F, 8903-030-177SD-B-F, 8903-040-177SD-B-F, 8903-050-177SD-B-F, 8903-060-177SD-B-F, 8903-080-177SD-B-F, 8903-100-177SD-B-F, 8903-120-177SD-B-F, 8903-020-177SD-D-F, 8903-030-177SD-D-F, 8903-040-177SD-D-F, 8903-050-177SD-D-F, 8903-060-177SD-D-F, 8903-080-177SD-D-F, 8903-100-177SD-D-F, 8903-120-177SD-D-F

Type: 8911 Plug with flanges and hooks · PN’s: 8911-020-178S-A-F, 8911-030-178S-A-F, 8911-040-178S-A-F, 8911-050-178S-A-F, 8911-060-178S-A-F, 8911-080-178S-A-F, 8911-100-178S-A-F, 8911-120-178S-A-F, 8911-020-178S-C-F, 8911-030-178S-C-F, 8911-040-178S-C-F, 8911-050-178S-C-F, 8911-060-178S-C-F, 8911-080-178S-C-F, 8911-100-178S-C-F, 8911-120-178S-C-F, 8911-020-178SD-A-F, 8911-030-178SD-A-F, 8911-040-178SD-A-F, 8911-050-178SD-A-F, 8911-060-178SD-A-F, 8911-080-178SD-A-F, 8911-100-178SD-A-F, 8911-120-178SD-A-F, 8911-020-178SD-C-F, 8911-030-178SD-C-F, 8911-040-178SD-C-F, 8911-050-178SD-C-F, 8911-060-178SD-C-F, 8911-080-178SD-C-F, 8911-100-178SD-C-F, 8911-120-178SD-C-F

Type: 8913 without flanges and hooks · PN’s: 8913-020-178S-A-F, 8913-030-178S-A-F, 8913-040-178S-A-F, 8913-050-178S-A-F, 8913-060-178S-A-F, 8913-080-178S-A-F, 8913-100-178S-A-F, 8913-120-178S-A-F, 8913-020-178S-C-F, 8913-030-178S-C-F, 8913-040-178S-C-F, 8913-050-178S-C-F, 8913-060-178S-C-F, 8913-080-178S-C-F, 8913-100-178S-C-F, 8913-120-178S-C-F, 8913-020-178SD-A-F, 8913-030-178SD-A-F, 8913-040-178SD-A-F, 8913-050-178SD-A-F, 8913-060-178SD-A-F, 8913-080-178SD-A-F, 8913-100-178SD-A-F, 8913-120-178SD-A-F, 8913-020-178SD-C-F, 8913-030-178SD-C-F, 8913-040-178SD-C-F, 8913-050-178SD-C-F, 8913-060-178SD-C-F, 8913-080-178SD-C-F, 8913-100-178SD-C-F, 8913-120-178SD-C-F

8900 Series
