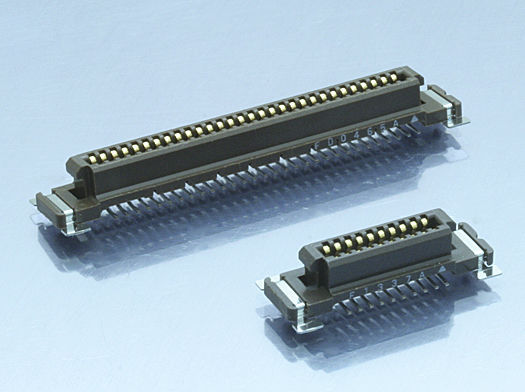

8900MS Series 1.27mm Pitch Low Profile Connector SMT Type

▶ Highly reliable contact design with independent and synchronized spring.
▶ Low insertion and withdrawal force.
▶ With a guide mechanism, smooth mating can be achieved.
▶ Insulator protects the contacts from damage or breakage.
▶ PPS insulator offers high temperature resistance.
▶ Stacked mating heights of 7, 8, 9, 10 and 12mm (0.276, 0.315, 0.354, 0.394 and 0.472´´)
▶ Wide variations in the number of contacts (20, 30, 40, 50, 60, 80, 100 and 120 pins) are available.
▶ Audible “click”assures users of complete mating.
▶ Two types, with and without a flange, are available.
▶ 3 rows of terminals conserve board space. (Right angle type)

Type: 8903 Receptacle · PN’s: 8903-020-177MS-A-F, 8903-030-177MS-A-F, 8903-040-177MS-A-F, 8903-050-177MS-A-F, 8903-060-177MS-A-F, 8903-080-177MS-A-F, 8903-100-177MS-A-F, 8903-120-177MS-A-F, 8903-020-177MS-B-F, 8903-030-177MS-B-F, 8903-040-177MS-B-F, 8903-050-177MS-B-F, 8903-060-177MS-B-F, 8903-080-177MS-B-F, 8903-100-177MS-B-F, 8903-120-177MS-B-F, 8903-020-177MSD-A-F, 8903-030-177MSD-A-F, 8903-040-177MSD-A-F, 8903-050-177MSD-A-F, 8903-060-177MSD-A-F, 8903-080-177MSD-A-F, 8903-100-177MSD-A-F, 8903-120-177MSD-A-F, 8903-020-177MSD-B-F, 8903-030-177MSD-B-F, 8903-040-177MSD-B-F, 8903-050-177MSD-B-F, 8903-060-177MSD-B-F, 8903-080-177MSD-B-F, 8903-100-177MSD-B-F, 8903-120-177MSD-B-F

Type: 8913 Plug · PN’s: 8913-020-178MS-A-F, 8913-030-178MS-A-F, 8913-040-178MS-A-F, 8913-050-178MS-A-F, 8913-060-178MS-A-F, 8913-080-178MS-A-F, 8913-100-178MS-A-F, 8913-120-178MS-A-F, 8913-020-178MSD-A-F, 8913-030-178MSD-A-F, 8913-040-178MSD-A-F, 8913-050-178MSD-A-F, 8913-060-178MSD-A-F, 8913-080-178MSD-A-F, 8913-100-178MSD-A-F, 8913-120-178MSD-A-F
