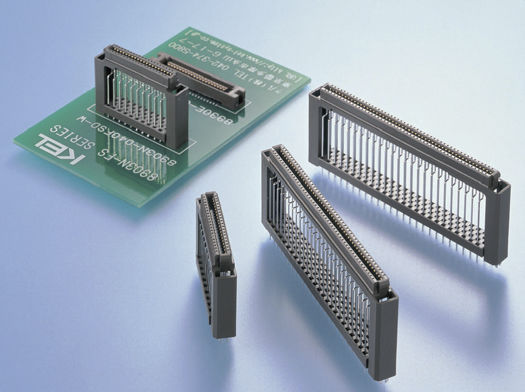

8903N-FS Series 1.27mm Pitch Connector Flexible Straight Type

▶ Standard stacked heights are 20, 22, 24, 26, and 30mm (0.787”, 0.866”, 0.945”, 1.024”, 1.102”, 1.181”).
▶ Other stacked heights from 20mm (0.787´´) to 32mm (1.260´´) are available.
▶ 8903N-FS series will mate with 8913/8930E/8931E series.
▶ Highly reliable contact design with independent and synchronized spring.
▶ Low insertion force and withdrawal force.
▶ Insulator protects the contacts from damage or breakage.
▶ Wide variations in the number of contacts (40, 50, 60, 68, 80, and 100 pins) are offered.
▶ Audible “click” assures users of complete mating.

Type: 8903N Receptacle · PN.s: 8903-020-177S-A-F, 8903-030-177S-A-F, 8903-040-177S-A-F, 8903-050-177S-A-F, 8903-060-177S-A-F, 8903-080-177S-A-F, 8903-100-177S-A-F, 8903-120-177S-A-F, 8903-020-177S-B-F, 8903-030-177S-B-F, 8903-040-177S-B-F, 8903-050-177S-B-F, 8903-060-177S-B-F, 8903-080-177S-B-F, 8903-100-177S-B-F, 8903-120-177S-B-F, 8903-020-177S-D-F, 8903-030-177S-D-F, 8903-040-177S-D-F, 8903-050-177S-D-F, 8903-060-177S-D-F, 8903-080-177S-D-F, 8903-100-177S-D-F, 8903-120-177S-D-F, 8903-020-177SD-A-F, 8903-030-177SD-A-F, 8903-040-177SD-A-F, 8903-050-177SD-A-F, 8903-060-177SD-A-F, 8903-080-177SD-A-F, 8903-100-177SD-A-F, 8903-120-177SD-A-F, 8903-020-177SD-B-F, 8903-030-177SD-B-F, 8903-040-177SD-B-F, 8903-050-177SD-B-F, 8903-060-177SD-B-F, 8903-080-177SD-B-F, 8903-100-177SD-B-F, 8903-120-177SD-B-F, 8903-020-177SD-D-F, 8903-030-177SD-D-F, 8903-040-177SD-D-F, 8903-050-177SD-D-F, 8903-060-177SD-D-F, 8903-080-177SD-D-F, 8903-100-177SD-D-F, 8903-120-177SD-D-F

8903N-FS Series
