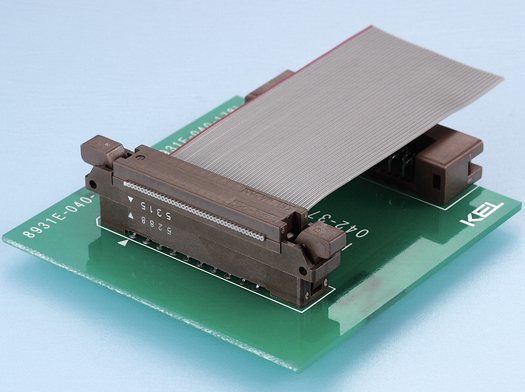

8925E Series 1.27mm Pitch Low Profile Connector for 0.635mm Pitch Flat Cable

▶ Highly reliable contact design with independent and synchronized spring.
▶ Low insertion and withdrawal force.
▶ Insulator protects contacts from damage.
▶ Mating height is only 11.8mm (0.465’’) (8925R).
▶ Ability to make “daisy chain”cable assemblies.

▶ Cable connector (Receptacle) is able to mate with 8913 series (8925 series: non ejector type).

▶ Connectors with the Eject-Lock mechanism, allowing one-handed insertion and release. (8925E and 8925R series).

▶ PCB side connector variations: Straight, Right angle and SMT.

Number of contacts: 20pin, 30pin, 40 pin, 50pin, 60pin, 68pin, 80 pin, 100 pin

Type: 8925 Receptacle (Cable side connector) Non ejector type, With strain relief (excl. 20, 30, 60 pins) · PN.s: 8925-040-179-F, 8925-050-179-F, 8925-068-179-F, 8925-080-179-F, 8925-100-179-F

Type: 8925E Ejector type, With strain relief  · PN.s: 8925E-020-179-F, 8925E-030-179-F, 8925E-040-179-F, 8925E-050-179-F, 8925E-060-179-F, 8925E-068-179-F, 8925E-080-179-F, 8925E-100-179-F, 8925E-020-179D-F, 8925E-030-179D-F, 8925E-040-179D-F, 8925E-050-179D-F, 8925E-060-179D-F, 8925E-068-179D-F, 8925E-080-179D-F, 8925E-100-179D-F

Type: 8925R Ejector type, Without strain relief · PN.s: 8925R-020-179-F, 8925R-030-179-F, 8925R-040-179-F, 8925R-050-179-F, 8925R-060-179-F, 8925R-068-179-F, 8925R-080-179-F, 8925R-100-179-F, 8925R-020-179D-F, 8925R-030-179D-F, 8925R-040-179D-F, 8925R-050-179D-F, 8925R-060-179D-F, 8925R-068-179D-F, 8925R-080-179D-F, 8925R-100-179D-F

Type: 8930E Plug (PCB side connector) Without hooks (SMT) · PN.s: 8930E-020-178MS-F, 8930E-030-178MS-F, 8930E-040-178MS-F, 8930E-050-178MS-F, 8930E-060-178MS-F, 8930E-068-178MS-F, 8930E-080-178MS-F, 8930E-100-178MS-F, 8930E-020-178MSD-F, 8930E-030-178MSD-F, 8930E-040-178MSD-F, 8930E-050-178MSD-F, 8930E-060-178MSD-F, 8930E-068-178MSD-F, 8930E-080-178MSD-F, 8930E-100-178MSD-F

Type: 8931E With hooks (Through hole) · PN.s: 8931E-020-178S-F, 8931E-030-178S-F, 8931E-040-178S-F, 8931E-050-178S-F, 8931E-060-178S-F, 8931E-068-178S-F, 8931E-080-178S-F, 8931E-100-178S-F, 8931E-020-178L-F, 8931E-030-178L-F, 8931E-040-178L-F, 8931E-050-178L-F, 8931E-060-178L-F, 8931E-068-178L-F, 8931E-080-178L-F, 8931E-100-178L-F, 8931E-020-178SD-F, 8931E-030-178SD-F, 8931E-040-178SD-F, 8931E-050-178SD-F, 8931E-060-178SD-F, 8931E-068-178SD-F, 8931E-080-178SD-F, 8931E-100-178SD-F, 8931E-020-178LD-F, 8931E-030-178LD-F, 8931E-040-178LD-F, 8931E-050-178LD-F, 8931E-060-178LD-F, 8931E-068-178LD-F, 8931E-080-178LD-F, 8931E-100-178LD-F
