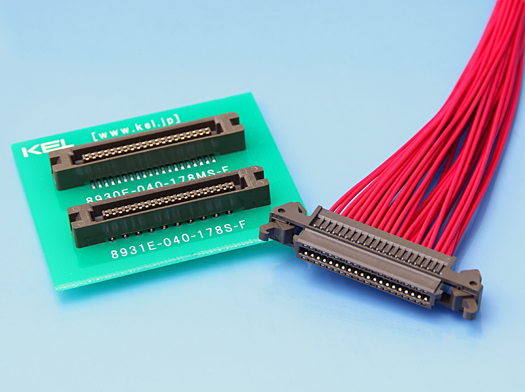

8929E Series 1.27mm Pitch Connector for Discrete Cable Crimp type
▶ Highly reliable contact design with independent and synchronized spring.
▶ Low insertion and withdrawal force.
▶ Insulator protects contacts from damage.
▶ Connectors with the Eject-Lock mechanism, allowing one-handed insertion and release.
▶ PCB side connector 8930E/8931E series can be mated with 8900 board to board connector series as mating combination.
▶ For discrete cable (#26 AWG, #28 AWG and #30 AWG)
Number of contacts: 30 pin, 40 pin, 50 pin, 60 pin, 68 pin
Type: 8929E Receptacle (Cable side connector) · PN’s: 8929E-030, 8929E-040, 8929E-050, 8929E-060, 8929E-068
Type: 8930E Plug (PCB side connector) without hooks, SMT · PN’s: 8930E-030-178MS-F, 8930E-040-178MS-F, 8930E-050-178MS-F, 8930E-060-178MS-F, 8930E-068-178MS-F
Type: 8931E with hooks, Through hole · PN’s: 8931E-030-178S-F, 8931E-040-178S-F, 8931E-050-178S-F, 8931E-060-178S-F, 8931E-068-178S-F, 8931E-030-178L-F, 8931E-040-178L-F, 8931E-050-178L-F, 8931E-060-178L-F
