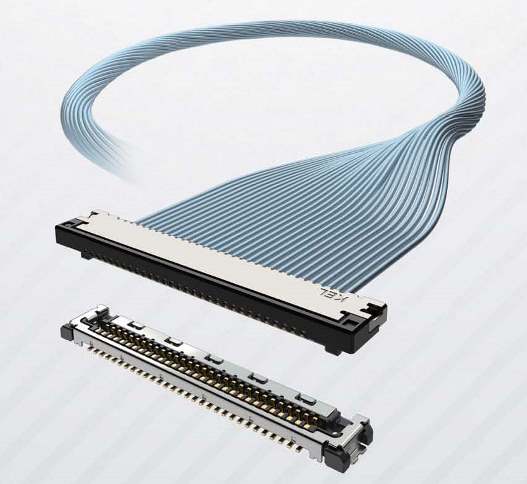

ASLS Series 0.4mm Pitch Connector for Micro Coaxial Cable (Stacking Type)

▶Compact connector with a low profile of 1.65mm and a mating width of 3.05 mm.
▶Non-magnetic realization that is not affected by magnetic field.
▶Operating temperature can be up to 105°C.

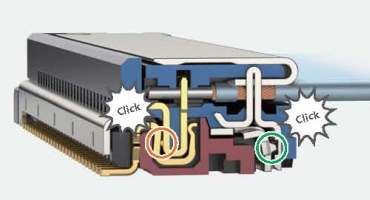

▶By providing locking mechanism on the contact and shell, good click feeling, reliable mating and increased cable lifting strength are achieved.
▶Double crimp structure for shield cable is able to increase cable retention force.
▶For reliable connection, contacts are designed with 2 contact points structure.
▶Equipped with a metal shell, noise reduction and product strength are ensured.
▶Achieved enhanced noise resistance (EMC) through multipoint ground contacts.
▶By shape guide on mating entrance, excellent workability, reliable insertion, prevent miss-mating and contacts damage during mating process are achieved.
▶Specially designed withdrawal jig is available.

【Type】 ASLS00：Receptacle (PCB side connector)

【Number of contacts】 30：30pin

【Type】ASLS20-30 ： Plug (Cable side connector)

【Number of contacts】 30：30pin

ASLS Series
