Axial, Radial, MELF Sockets page 1 (1-50 PN.s) · Loranger

  • Building Block Stripsockets for Automated Carrier Packaging
  • Accepts Multiple-lead Diameters
  • Excellent Contact Design for Wiping Action on Lead’s Diameter
  • Tailored for Production and Burn-in Testing
  • Modifications Available
  • Kelvin and Double-sided Contacts

CATALOG

Categories: , , Tags: , , , , , , , , , , , , , , ,

Description

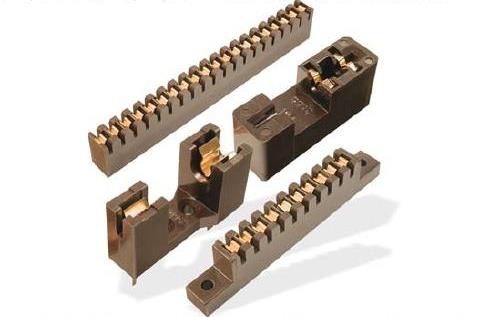

Axial / Radial / MELF Sockets
Design Features

Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.

P/N Pkg  Type I/O Pitch (in)
02444 022 X215 Stud Mount 2 0.000
02445 021 6215 Stud Mount 2 0.000
02446 022 6215 2 0.000
03186 021 6215 2 0.000
03451 041 6218B CHIP 2 0.000
03451 041 6218C CHIP 2 0.000
03451 041 6218D CHIP 2 0.000
03454 021 X215 Diode 2 0.000
03480 021 6215 Diode 2 0.000
03480 041 X215 Diode 2 0.000
03480 101 X215 CHIP 2 0.000
03481 021 X215 CHIP 2 0.000
03481 101 6215 CHIP 2 0.000
03481 101 6218 CHIP 2 0.000
03481 101 X218D CHIP 2 0.000
03482 101 X215 CHIP 2 0.000
03532 021 6215 Dual Diode 2 0.130
03533 021 X215 Hybrid 2 0.190
03555 021 6215 2 0.300
04158 041 X217 MELF DIODE 2 0.000
03533 031 6215 3 0.150
03630 031 6218 3 0.300
03522 041 X217 Axial 4 0.000
03533 081 6218A 4 0.190
03519 051 X217 Axial 5 0.000
03521 051 X217 Axial 5 0.000
02992 101 6218F 6 0.200
03524 061 X215 6 0.150
03533 061 6215 6 0.125
03533 061 6218D 6 0.125
03533 061 6218E 6 0.125
03600 061 X218A 6 0.200
02992 251 6218B 8 0.600
03533 081 6215 8 0.190
03533S081 6215 8 0.190
03600 081 X218A 8 0.200
03600 251 X218E 8 0.200
02992 251 6218A 9 0.600
03533 091 6215 9 0.100
02992 101 6215A 10 0.200
02992 102 6215 10 0.200
03600 251 6218C 10 0.200
03524 121 ASSY Hybrid 12 0.150
03602 141 ASSY 12 0.000
03602 142 ASSY 12 0.250
03630 251 X218L 12 0.600
03600 251 X218B 14 0.200
03630 251 6218K 15 0.300
03600 082 X215 16 0.200
02992 181 6215A 18 0.200
