BLT32 LED strip lighting Series

Compact Structure – Four lengths Adjustable – High quality machine LED light

Features:

• Shell width 32mm, Lighting lengths available with 250/500/750/1000mm
• 24V DC (18~30VDC – Blank) or 220V AC (198~242VAC)

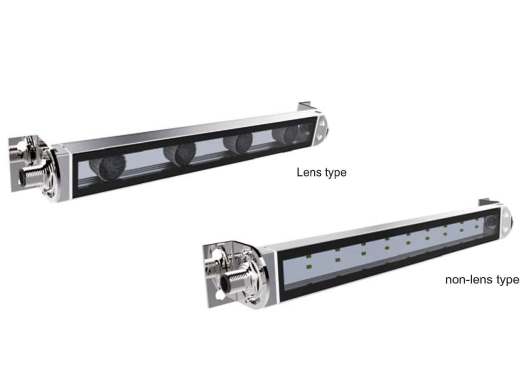

• High performance LED package, high thermal conductivity, low glare, low light decay, lens and non-lens type, with uniform light distribution and no shadow, lens type can be use for long distance and high illuminance environment
• Alumina housing and durable glass window, waterproof and dustproof up to IP65
• Cabled and quick-disconnect models available
• Stand-alone and cascadable models available
• the L-type swivel mounting brackets
• Certified: CE

Application areas: Milling Machine, Turning Machine, Grinding Machine Tools, etc. Flexible Production Lines, and other harshest industrial environments where need high waterproof, dustproof performances !

DC 24V Models: BLT32W250, BLT32W250-M/2M, BLT32W500, BLT32W500-M, BLT32W500L60-C, BLT32W750, BLT32W750L60-MC, BLT32W1000, BLT32W1000-C, BLT32W1000L60-MC

AC 220V Models: BLT32W250-M/2M-AC, BLT32W500-M/2M-AC, BLT32W500-M-AC, BLT32W750-M/2M-AC, BLT32W1000-M/2M-AC, BLT32W1000-MC-AC

The default matching mounting brackets, angle adjustable, 304 stainless steel, each lamp with two mounting brackets.

BLT32 Series
