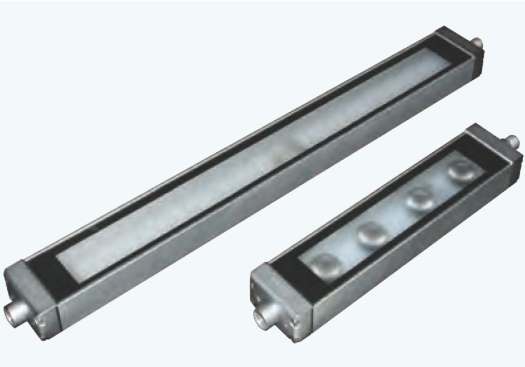

BLT48 LED strip lighting Series

Features:

• Shell width 48mm, Light lengths available with 200/400/600/800mm
• Alumina housing with anodizing surface, durable toughened glass window, waterproof and dustproof up to IP67
• Cascadable models, the maximum number of cascadable lights up to 8pcs when the input 24V
• Life time: 50.000 hours
• Operating Voltage: 18…36V DC
• Mounting brackets with angle adjustable
• Easy installation: 4-pin M12 quick-disconnect models
• Lens and non-lens type, with uniform light distribution and no shadow
• Certified: CE

Application areas: Milling Machine, Turning Machine, Grinding Machine Tools, etc. Flexible Production Lines, and other harshest industrial environments where need high waterproof, dustproof performances !

Model: BLT48W200-M, BLT48W400-M, BLT48W600-M, BLT48W800, BLT48W200L60-M, BLT48W400L60-M, BLT48W600L60-M, BLT48W800-M

The default matching mounting brackets, angle adjustable, each lamp with two mounting brackets Type NO.: BLZ-L05

BLT48 Series
