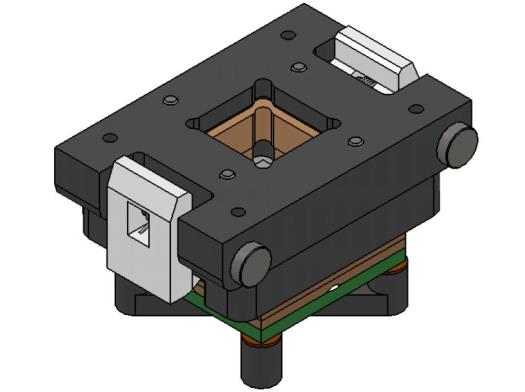

OPEN TOP DUAL LATCH CBT Direct Mount, SOLDERLESS Socket for BURN-IN and TEST Applications

Description: Open Top CBT socket for 0.5mm pitch, 10mm square, 12mm tip-tip, 64 pin QFP package with exposed pad

Features:

• Wide temperature range (-55°C to +180°C )
• High current capability (up to 4A)
• Excellent signal integrity at high frequencies
• Low and stable contact resistance for reliable production yield
• Highly compliant to accommodate wide co-planarity variations
• Automated probe manufacturing enables low cost and short lead time

CBT-QFE-3001
