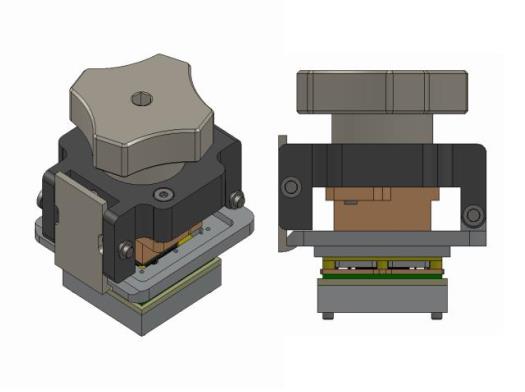

Spring pin socket for QFE128SD package; Direct Mount, SOLDERLESS Socket for BURN-IN and TEST Applications

Description: CBT-QFE128SD w/ gnd pin array, socket for 0.5mm pitch, 14mm square, 16x16mm t-t, 128 pin QFP package

Features:

• Wide temperature range (-55°C to +180°C )
• High current capability (up to 1.8A)
• Excellent signal integrity at high frequencies
• Low and stable contact resistance for reliable production yield
• Highly compliant to accommodate wide co-planarity variations
• Automated probe manufacturing enables low cost and short lead time

CBT-QFE-3002
