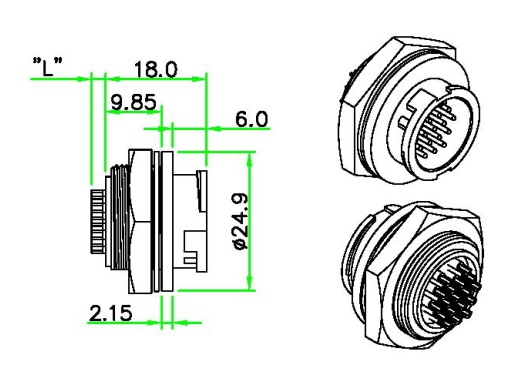

CCx-L1xxCSF

Circular C-Size Male Connector, Male Pin, Front Mount, Lock Type, Bayonet Locking, Round Flange, Solder Bucket Pin

Features:

• Current rating: 2, 5, 10 and 20A
• Waterproof rating: IP66-68
• Temperature Range: -25°C to +85°C
• Durability: > 1000 cycles
• Nr. of Pin: 2, 3, 4, 5, 6, 9, 10, 11, 12, 14, 18

Model PN.s: CCG-L103CSF, CCG-L103CSF, CCP-L104CSF, CCP-L105CSF, CCP-L106CSF, CCD-L109CSF, CCD-L110CSF, CCD-L112CSF, CCD-L114CSF, CCN-L118CSF

CCx-L1xxCSF
