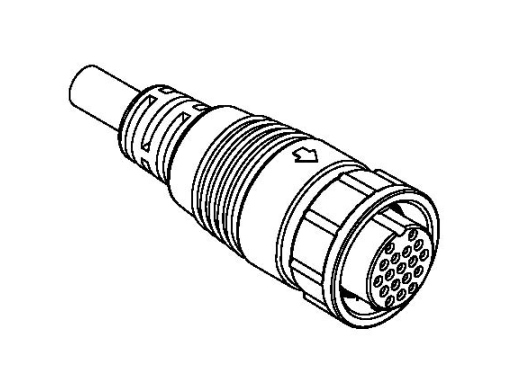

CCx-L2xxSM Circular C-Size Female Connector, Female Pin, Bayonet Locking, Lock Type, Molded Cable – Holin

CCx-L2xxSM

Circular C-Size Female Connector, Female Pin, Bayonet Locking, Lock Type, Molded Cable

Features:

  • Current rating: 2, 5, 10 and 20A
  • Waterproof rating: IP66-68
  • Temperature Range: -25°C to +85°C
  • Durability: > 1000 cycles
  • Nr. of Pin: 2, 3, 4, 5, 6, 9, 10, 11, 12, 14, 18

Model PN.s: CCG-L202SM, CCG-L203SM, CCP-L204SM, CCP-L205SM, CCP-L206SM, CCD-L209SM, CCD-L210SM, CCD-L212SM, CCD-L214CSM, CCN-L218SM

CCx-L2xxSM
