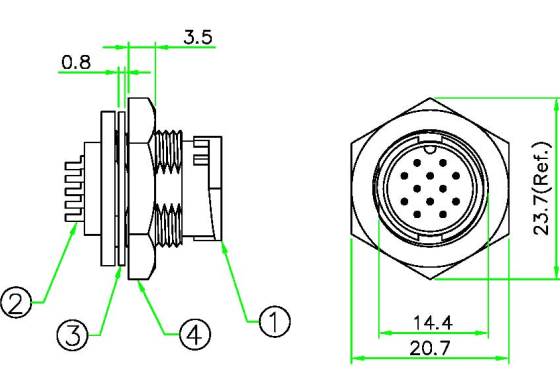

CBx-L1xxCSR

Circular B-Size, Male Connector, Male Pin, Rear Mount, Lock Type, Round Flange, Solder Bucket Pin

Features:

• Current rating: 2 / 5 / 10A
• Waterproof rating: IP66-68
• Temperature Range: -25°C to +85°C
• Durability: > 1000 cycles
• Nr. of Pin A-Coding: 2, 3, 4, 5, 6, 7, 8, 10, 12

Model PN.s: CBP-L102CSR, CBP-L103CSR, CBP-L104CSR, CBD-L102CSR, CBD-L103CSR, CBD-L104CSR, CBD-L105CSR, CBD-L106CSR, CBD-L107CSR, CBD-L108CSR, CBN-L110CSR, CBN-L112CSR

CBx-L1xxCSR
