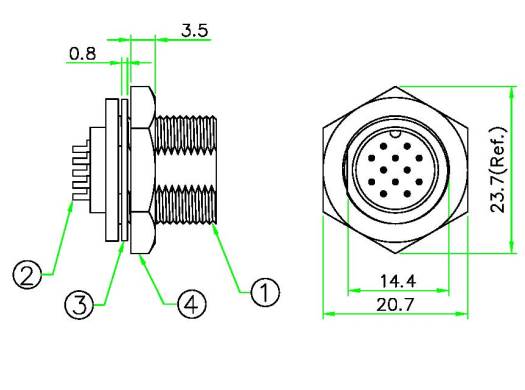

CBx-P1xxCSR Circular B-Size Male Connector, Male Pin, Rear Mount, Screw Type, Round Flange – Holin

CBx-P1xxCSR

Circular B-Size, Male Connector, Male Pin, Rear Mount, Screw Type, Round Flange, Solder Bucket Pin

Features:

  • Current rating: 2 / 5 / 10A
  • Waterproof rating: IP66-68
  • Temperature Range: -25°C to +85°C
  • Durability: > 1000 cycles
  • Nr. of Pin A-Coding: 2, 3, 4, 5, 6, 7, 8, 10, 11, 12

Model PN.s: CBP-P102CSR, CBP-P103CSR, CBP-P104CSR, CBD-P102CSR, CBD-P103CSR, CBD-P104CSR, CBD-P105CSR, CBD-P106CSR, CBD-P107CSR, CBD-P108CSR, CBN-P110CSR, CBN-P112CSR

CBx-P1xxCSR
