CR 1620 Lithium-Manganese Dioxide Coin Cells MnO2/Li 75 mAh

SPECIFICATIONS:

• Nominal Voltage: 3V
• Nominal Capacity: 75 mAh
• Standard Load: 47 kΩ
• Standard Current: 0.65 mA
• Max. Pulse Current: 8 mA
• Operating Temperature: -30°C to +70°C

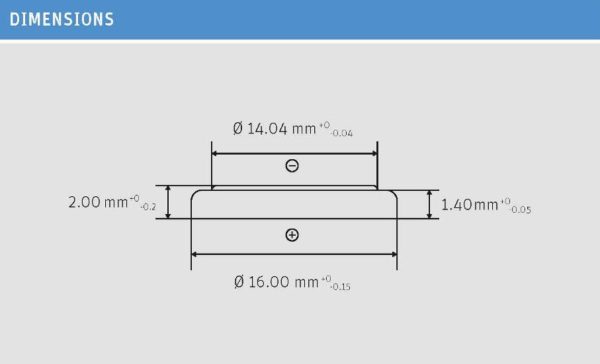

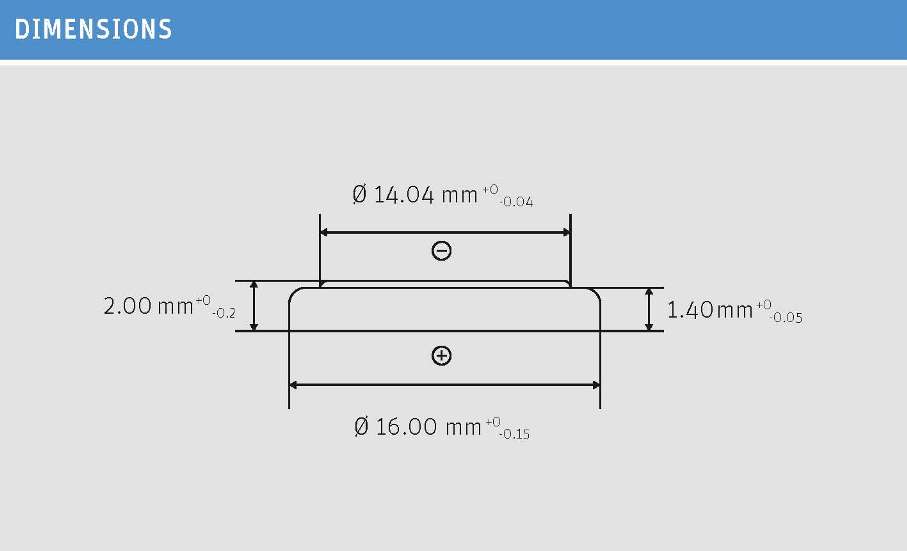

• Dimensions: Ø 16.00 +/- 0.15 x 2.0 +/- 0.2
• Weight Approx.: 1.25 gr.
• Chemistry: Li/MnO2
• UI1642: MH62838

CR 1620
