CR 1632 H2 Lithium-Manganese Dioxide Coin Cells MnO2/Li 135 mAh · Jauch Battery
CR 1632 H2 Lithium-Manganese Dioxide Coin Cells MnO2/Li 135 mAh
SPECIFICATIONS:
- Nominal Voltage: 3V
- Nominal Capacity: 135 mAh
- Standard Load: 30 kΩ
- Standard Current: 0.2 mA
- Max. Continuos Current: 1 mA
- Max. Pulse Current: 10 mA
- Operating Temperature: -30°C to +70°C

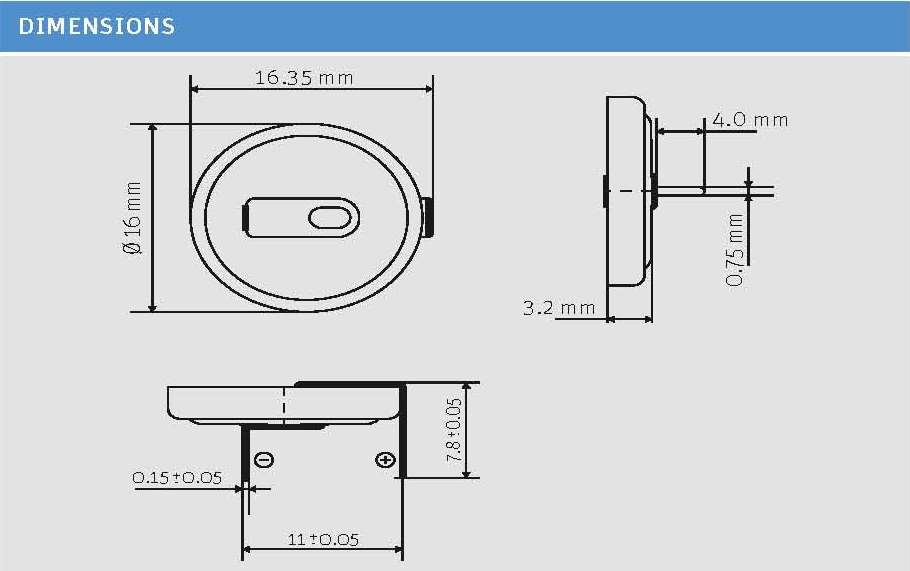

- Dimensions: Ø 16.00 +/- 0.15 x 3.20 +/- 0.2
- Weight Approx.: 2 gr.
- Chemistry: Li/MnO2
- UI1642: MH62838
- Termination Style: Solder Tab
