CR 1632 H2B Lithium-Manganese Dioxide Coin Cells MnO2/Li 135 mAh

SPECIFICATIONS:

• Nominal Voltage: 3V
• Nominal Capacity: 135 mAh
• Standard Load: 30 kΩ
• Standard Current: 0.2 mA
• Max. Continuos Current: 1 mA
• Max. Pulse Current: 10 mA
• Operating Temperature: -30°C to +70°C

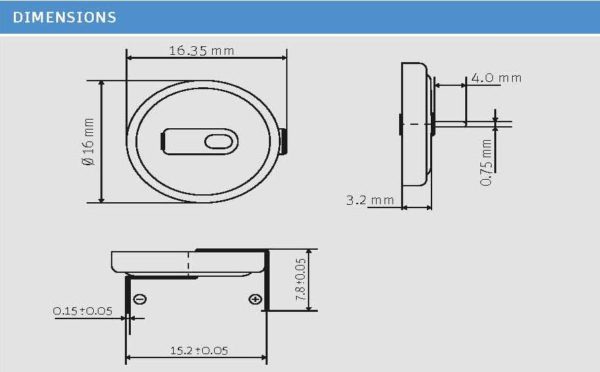

• Dimensions: Ø 16.00 +/- 0.15 x 3.20 +/- 0.2
• Weight Approx.: 2 gr.
• Chemistry: Li/MnO2
• UI1642: MH62838
• Termination Style: Solder Tab

CR 1632 H2B
