CR 2450 H3 Lithium-Manganese Dioxide Coin Cells MnO2/Li 610 mAh

SPECIFICATIONS:

• Nominal Voltage: 3V
• Nominal Capacity: 610 mAh
• Standard Load: 7.5 kΩ
• Standard Current: 0.4 mA
• Max. Continuos Current: 4 mA
• Max. Pulse Current: 15 mA
• Operating Temperature: -30°C to +70°C

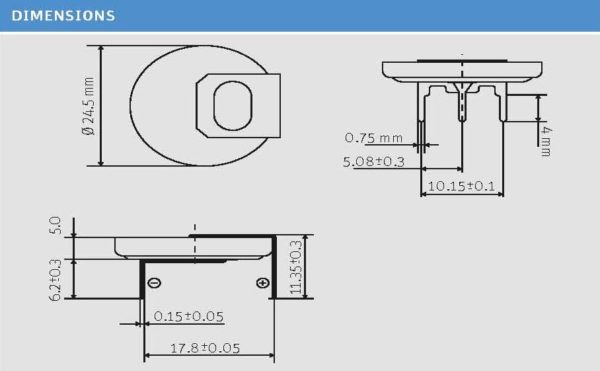

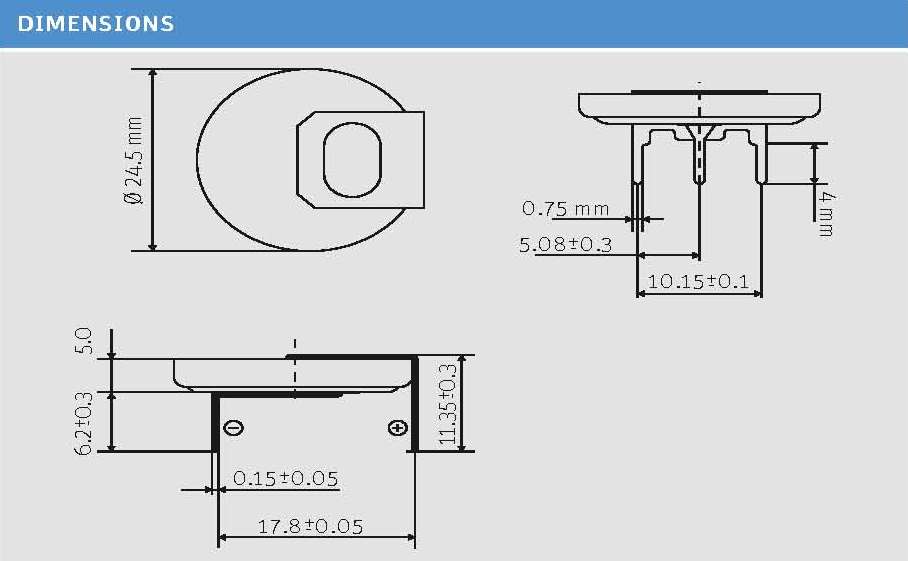

• Dimensions: Ø 24.50 +/- 0.15 x 5.00 +/- 0.2
• Weight Approx.: 7 gr.
• Chemistry: Li/MnO2
• UI1642: MH62838
• Termination Style: Solder Tab

CR 2450 H3
