CR 2477 V3 Lithium-Manganese Dioxide Coin Cells MnO2/Li 1000 mAh

SPECIFICATIONS:

• Nominal Voltage: 3V
• Nominal Capacity: 1000 mAh
• Standard Load: 7.5 kΩ
• Standard Current: 0.5 mA
• Max. Continuos Current: 2 mA
• Max. Pulse Current: 15 mA
• Operating Temperature: -30°C to +70°C

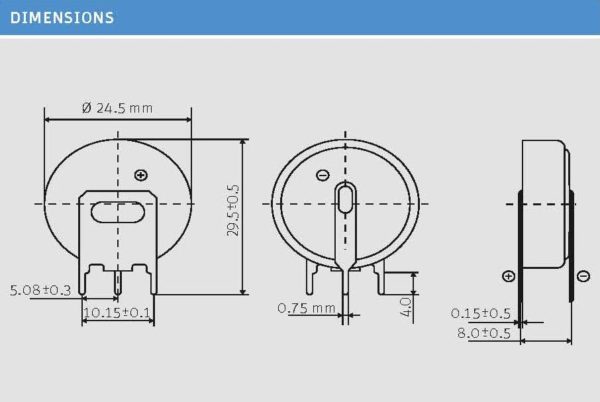

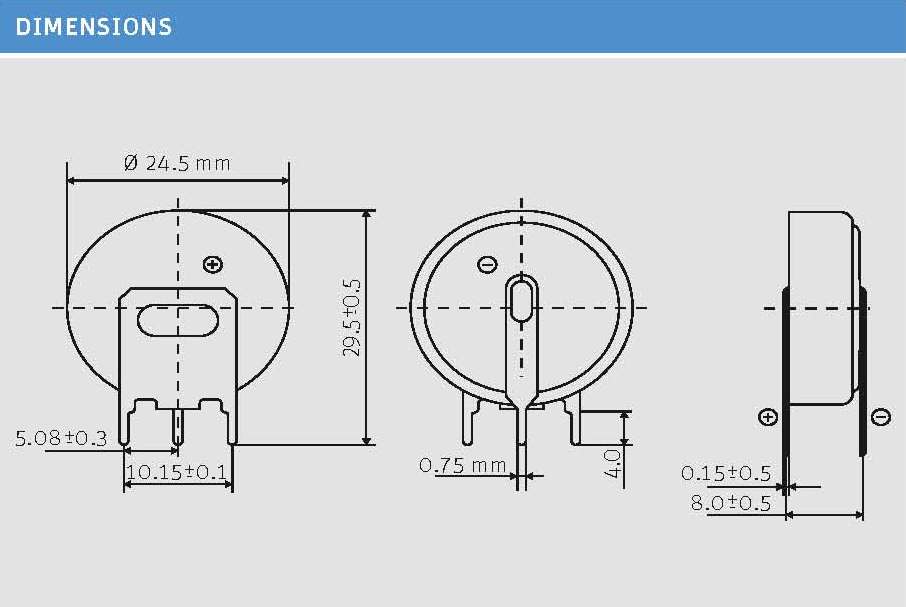

• Dimensions: Ø 24.50 +/- 0.15 x 7.70 +/- 0.2
• Weight Approx.: 9.5 gr.
• Chemistry: Li/MnO2
• UI1642: MH62838
• Termination Style: Solder Tab

CR 2477 V3
