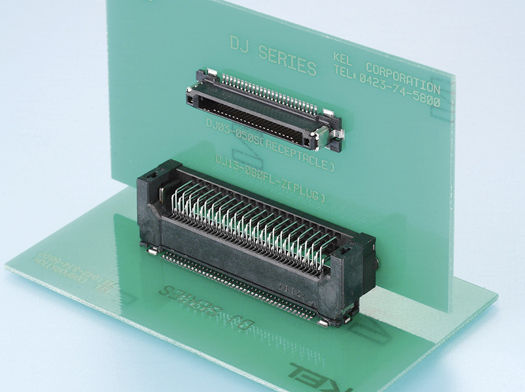

DJ Series 1mm Pitch Connector for Removable Media Device

▶ Power contacts have a 5A (max.) current rating.
▶ Signal contacts are designed with a 2-level sequence.
▶ The conductivity of the retention clips for the plug and receptacle allows frame ground connection between devices.
▶ The mating position can be adjusted by selecting an appropriate standoff height in the mechanical design phase.
▶ Absorbs -1.5mm gap in XY directions when mating.

Number of contacts: 40 pin, 50 pin, 60 pin, 80 pin

Type: DJ03 Receptacle with power contact · PN’s: DJ03-040S-F, DJ03-050S-F, DJ03-060S-F, DJ03-080S-F

Type: DJ04 Without power contact · PN’s: DJ04-040S-F, DJ04-050S-F, DJ04-060S-F, DJ04-080S-F

Type: DJ33 Plug with power contact · PN’s: DJ33-040L-F, DJ33-050L-F, DJ33-060L-F, DJ33-080L-F, DJ33-040FL-T-F, DJ33-050FL-T-F, DJ33-060FL-T-F, DJ33-080FL-T-F, DJ33-040FL-V-F, DJ33-050FL-V-F, DJ33-060FL-V-F, DJ33-080FL-V-F, DJ33-040FL-Y-F, DJ33-050FL-Y-F, DJ33-060FL-Y-F, DJ33-080FL-Y-F, DJ33-040FL-Z-F, DJ33-050FL-Z-F, DJ33-060FL-Z-F, DJ33-080FL-Z-F

Type: DJ34 Without power contact · PN’s: DJ34-040L-F, DJ34-050L-F, DJ34-060L-F, DJ34-080L-F, DJ34-040FL-T-F, DJ34-050FL-T-F, DJ34-060FL-T-F, DJ34-080FL-T-F, DJ34-040FL-V-F, DJ34-050FL-V-F, DJ34-060FL-V-F, DJ34-080FL-V-F, DJ34-040FL-Y-F, DJ34-050FL-Y-F, DJ34-060FL-Y-F, DJ34-080FL-Y-F, DJ34-040FL-Z-F, DJ34-050FL-Z-F, DJ34-060FL-Z-F, DJ34-080FL-Z-F
