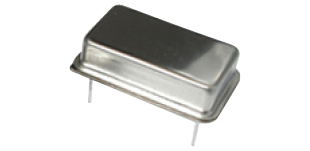

DLS True Sine Wave Thru-Hole Crystal Clock Oscillator

Features:

  • Thru-Hole DIL14 oscillator
  • High purity and low total harmonic distortion.
  • Applications : Audio modulation
  • Standard frequencies: 10.0 MHz ~ 800.0 MHz
  • Supply Voltage: 3.3V
  • Dimension: 20.4 x 12.9 x 5.08 mm

DLS Series

Description

HM International produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 dls DLS Wide frequency range 20.4 x 12.9 x 5.08 mm 10 – 800 MHz
