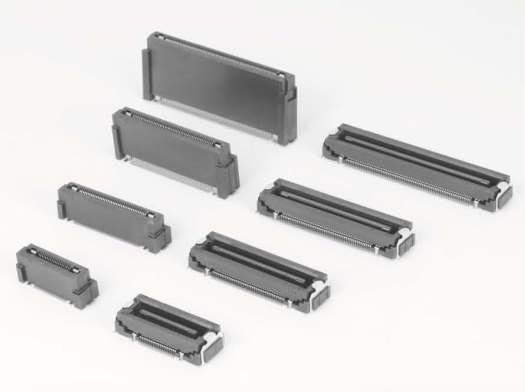

DT-E Series Compliant with SATA Rev3.0 Requirements, 0.5mm Pitch Floating connector – Type with Power Terminal

▶ Compatible with high-speed serial transmission equivalent to SATA standard. The transmission characteristics meet all the required standards of SATA Rev3.0. (Differential impedance: 100Ω±15%)
▶ With 4 power contacts (6.0A per contact)
▶ The floating amount is secured at ±0.7mm in the XY direction.
▶ Highly reliable design with effective mating length of 1.5mm.
▶ With or without positioning posts.
▶ Seven types of signal terminals are available, ranging from 30 to 140 pins.
▶ The connection type is stacked mating.
▶ Stack heights range from 8mm to 30mm.

【Type】 Receptacle DT00E：Without positioning posts　DT01E：With positioning posts

【Number of contacts】 030：30pin,　040：40pin,　060：60pin,　080：80pin,　100：100pin,　120：120pin,　140：140pin

【Contact tail style】 S： Straight

【Anti-dust tape】T： With anti-dust tape

【Type】Plug DT10E： Without positioning posts DT11E：With positioning posts

【Number of contacts】 030：30pin,　040：40pin,　060：60pin,　080：80pin,　100：100pin,　120：120pin,　140：140pin

【Contact tail style】 S： Straight

【Stacked height】 (DT0 □ E- □□□ S-T Mated situation) 8：8mm　10：10mm　15：15mm　20：20mm

(DT0 □ E- □□□ FS-10-T Mated situation) 8：18mm　10：20mm　15：25mm　20：30mm

【Anti-dust tape】T： With anti-dust tape

DT-E Series

Categories: 0.5mm Pitch Connectors, Board to Board Connectors, Floating Connectors, KEL Corporation Tags: 0.5mm Pitch, connector, DT-E Series, Floating, High-Speed Transmission, Low profile, Power Terminal, RoHS Compliant, SATA, XY direction

Description

Description

Floating structure:

When the connector is mounted on the printed circuit board, a position error in the two directions of horizontal and vertical (XY direction) may occur at both connectors. In addition, if each printed circuit board is fixed to a case by screws after mating connectors, the connectors may have to compensate for the position error because a gap occurs during screwing the printed circuit board. A connector having a tolerance to compensate for such an error or gap caused by vibration is called a floating connector. The DT-E series is a 0.5mm fine pitch connector with ±0.7mm floating structure and ensures sufficient compensation for position errors.
