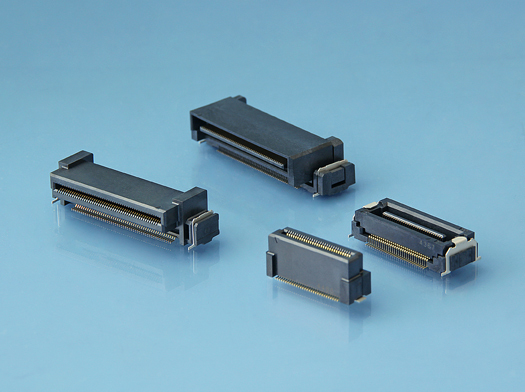

DT Series 0.5mm Pitch Floating Connector for High-Speed Transmission

▶ High-speed serial transmission in the SATA standard level is supported, satisfying all the transmission characteristics required by the SATA Rev 3.0.
▶ Floating amount ±0.5mm in both X and Y directions.
▶ The effective mating length of stacked and vertical connection is 1.5mm (0.059”), The effective mating length of the horizontal connection is 1.7mm (0.067”).
▶ 3 Variations for Stacked / Vertical / Horizontal mating.
▶ Wide variations of stacked mating heights of 10,17,18,19 and 20mm. (0.394, 0.669, 0.709, 0.748, 0.787”) * Stacked mating height of 25mm is under development.
▶ Wide variations of contacts (30, 40, 60, 80, 100, 140, and 240 pins) are available.
▶ Arc-shaped contacts prevent foreign matters which may cause mating error.

Type: DT00 Receptacle without positioning posts · PN.s: DT00-030S-T, DT00-030L, DT00-040L, DT00-040S-T, DT00-060L, DT00-060S-T, DT00-080L, DT00-080S-T, DT00-100L, DT00-100S-T, DT00-120S-T, DT00-140L-TR, DT00-140S-T, DT00-160S-T, DT00-240S-T, DT00-240S-TR-T, DT00S-030S-T, DT00S-040S-T

Type: DT01 with positioning posts · PN.s: DT01-030L, DT01-030S-T, DT01-040L, DT01-040S-T, DT01-060L, DT01-060S-T, DT01-080L, DT01-080S-T, DT01-100L, DT01-100S-T, DT01-120S-T, DT01-140L-TR, DT01-140S-T, DT01-160S-T, DT01-240S-T, DT01-240S-TR-T

Type: DT10 Plug without positioning posts · PN.s: DT10-030L, DT10-030S-10-T, DT10-030S-16-T, DT10-030S-17-T, DT10-030S-18-T, DT10-030S-19-T, DT10-030S-20-T, DT10-030S-8-T, DT10-040L, DT10-040S-10-T, DT10-040S-17-T, DT10-040S-18-T, DT10-040S-19-T, DT10-040S-20-T, DT10-060L, DT10-060S-10-T, DT10-060S-16-T, DT10-060S-17-T, DT10-060S-18-T, DT10-060S-19-T, DT10-060S-20-T, DT10-080L, DT10-080S-10-T, DT10-080S-17-T, DT10-080S-18-T, DT10-080S-19-T, DT10-080S-20-T, DT10-100L, DT10-100S-10-T, DT10-100S-17-T, DT10-100S-18-T, DT10-100S-19-T, DT10-100S-20-T, DT10-100S-8-T, DT10-120S-16-T, DT10-140L-TR, DT10-140S-10-T, DT10-140S-11-T, DT10-140S-17-T, DT10-140S-18-T, DT10-140S-19-T, DT10-140S-20-T, DT10-140S-8-T, DT10-240S-10-T, DT10-240S-10-TR-T, DT10S-030S-10-T, DT10S-040S-10-T

Type: DT11 with positioning posts · PN.s: DT11-030L, DT11-030S-10-T, DT11-030S-16-T, DT11-030S-17-T, DT11-030S-18-T, DT11-030S-19-T, DT11-030S-20-T, DT11-030S-8-T, DT11-040L, DT11-040S-10-T, DT11-040S-17-T, DT11-040S-18-T, DT11-040S-19-T, DT11-040S-20-T, DT11-060L, DT11-060S-10-T, DT11-060S-16-T, DT11-060S-17-T, DT11-060S-18-T , DT11-060S-19-T, DT11-060S-20-T, DT11-080L, DT11-080S-10-T, DT11-080S-17-T, DT11-080S-18-T, DT11-080S-19-T, DT11-080S-20-T, DT11-100L, DT11-100S-10-T, DT11-100S-17-T, DT11-100S-18-T, DT11-100S-19-T, DT11-100S-20-T, DT11-100S-8-T, DT11-120S-16-T, DT11-140L-TR, DT11-140S-10-T, DT11-140S-11-T, DT11-140S-17-T, DT11-140S-18-T, DT11-140S-19-T, DT11-140S-20-T, DT11-140S-20-T, DT11-140S-8-T, DT11-240S-10-T, DT11-240S-10-TR-T
