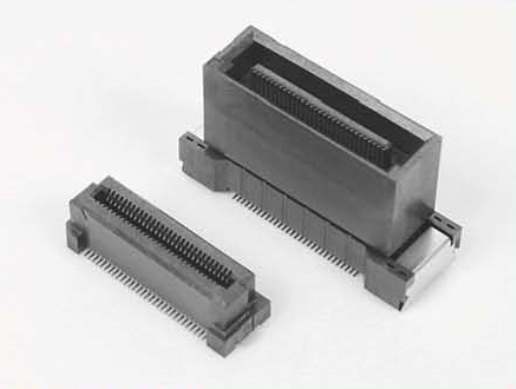

DT12-13 Series 0.5mm Pitch Floating Connector – High Heat Resistance Type

▶ The operating temperature support up to +125℃.
▶ Floating amount ±1.0mm in both X and Y directions.
▶ Highly reliable design with effective mating length of 1.5mm.
▶ With or without positioning posts.
▶ 60pin is available.
▶ The connection type is stacked mating.
▶ The stacked mating type has a stacking height of 18mm.

【Type】 Receptacle DT12：Without positioning posts　DT13：With positioning posts

【Number of contacts】 060：60pin

【Contact tail style】 S： Straight

【Stacked hight】(DT0 □ -060FS-10-T Mated situation) 8：18mm

【Anti-dust tape】T： With anti-dust tape

DT12-13 Series

Categories: 0.5mm Pitch Connectors, Board to Board Connectors, Floating Connectors, KEL Corporation Tags: 0.5mm Pitch, connector, DT12-13, Floating, High Heat Resistance, High-Speed Transmission, Low profile, Power Terminal, RoHS Compliant, XY direction

Description

Description

Floating structure:

When the connector is mounted on the printed circuit board, a position error in the two directions of horizontal and vertical (XY direction) may occur at both connectors. In addition, if each printed circuit board is fixed to a case by screws after mating connectors, the connectors may have to compensate for the position error because a gap occurs during screwing the printed circuit board. A connector having a tolerance to compensate for such an error or gap caused by vibration is
called a floating connector. The DT12/13 series is a 0.5mm fine pitch connector with ±1.0mm floating structure and ensures sufficient compensation for position errors. (DT0 □ -060FS-10-T Mated situation)
