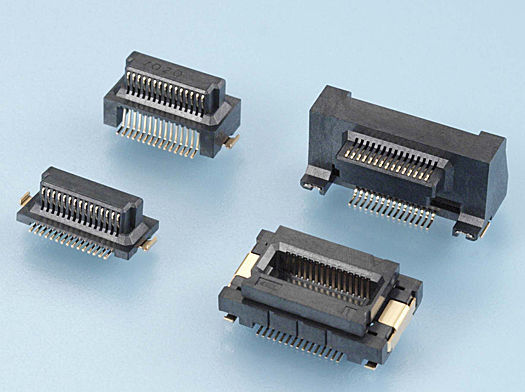

DY Series 0.5mm Pitch Floating Connector

▶ Location error offsets ±0.5mm in the XY direction.
▶ High reliable design with effective mating length of 1.25mm (0.049’’).
▶ Suction area for automated mounting provided.
▶ Positioning posts are optional for manual mounting.
▶ Wide variations of contacts (30, 40, 50, 60, 80, 100, 120 and 140 pins) are available.
▶ Vertical and Stacked mating combinations.
▶ Stacked mating heights of 5, 6, 7, 8, 9, 10, 11, 12, 13 and 14mm. (0.197, 0236, 0.276, 0.315, 0.354, 0.394, 0.433, 0.472, 0.512 and 0.551”) *Available mating height varies with the product type.
▶ Shape of retention clip forming the large fillet. *Optional type with a dust cap provided on a plug side is also available.

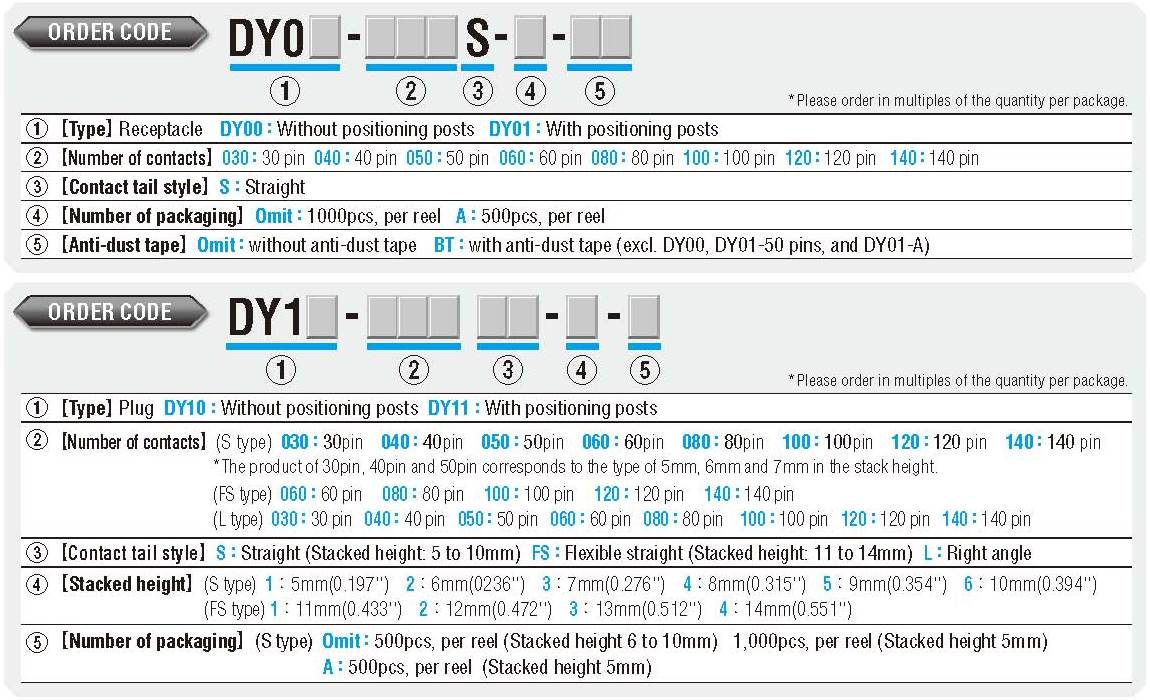

Type: DY00 Receptacle without positioning posts · PN.s: DY00-030S, DY00-040S, DY00-050S, DY00-060S, DY00-080S, DY00-100S, DY00-120S, DY00-140S, DY00-030S-A, DY00-040S-A, DY00-050S-A, DY00-060S-A, DY00-080S-A, DY00-100S-A, DY00-120S-A, DY00-140S-A

Type: DY01 with positioning posts · PN.s: DY01-030S, DY01-040S, DY01-060S, DY01-080S, DY01-100S, DY01-120S, DY01-140S, DY01-030S-A, DY01-040S-A, DY01-050S-A, DY01-060S-A, DY01-080S-A, DY01-100S-A, DY01-120S-A, DY01-140S-A

Type: DY10 Plug without positioning posts · PN.s: DY10-030L, DY10-040L, DY10-050L, DY10-060L, DY10-080L, DY10-100L, DY10-120L, DY10-030S-1-A, DY10-040S-1-A, DY10-050S-1-A, DY10-060S-1-A, DY10-080S-1-A, DY10-100S-1-A, DY10-120S-1-A, DY10-140S-1-A, DY10-030S-1, DY10-040S-1, DY10-050S-1, DY10-060S-1, DY10-080S-1, DY10-100S-1, DY10-120S-1, DY10-140S-1, DY10-030S-2, DY10-040S-2, DY10-050S-2, DY10-060S-2, DY10-080S-2, DY10-100S-2, DY10-120S-2, DY10-140S-2, DY10-030S-3, DY10-040S-3, DY10-050S-3, DY10-060S-3, DY10-080S-3, DY10-100S-3, DY10-120S-3, DY10-140S-3, DY10-060S-4, DY10-080S-4, DY10-100S-4, DY10-120S-4, DY10-140S-4, DY10-060S-5, DY10-080S-5, DY10-100S-5, DY10-120S-5, DY10-140S-5, DY10-060S-6, DY10-080S-6, DY10-100S-6, DY10-120S-6, DY10-140S-6

Type: DY11 with positioning posts · PN.s: DY11-030L, DY11-040L, DY11-050L, DY11-060L, DY11-080L, DY11-100L, DY11-120L, DY11-060FS-2, DY11-080FS-2, DY11-100FS-2, DY11-120FS-2, DY11-140FS-2, DY10-060FS-2, DY10-080FS-2, DY10-100FS-2, DY10-120FS-2, DY10-140FS-2, DY10-060FS-3, DY10-080FS-3, DY10-100FS-3, DY10-120FS-3, DY10-140FS-3, DY10-060FS-4, DY10-080FS-4, DY10-100FS-4, DY10-120FS-4, DY10-140FS-4, DY11-030S-1-A, DY11-040S-1-A, DY11-050S-1-A, DY11-060S-1-A, DY11-080S-1-A, DY11-100S-1-A, DY11-120S-1-A, DY11-140S-1-A, DY11-030S-1, DY11-040S-1, DY11-050S-1, DY11-060S-1, DY11-080S-1, DY11-100S-1, DY11-120S-1, DY11-140S-1, DY11-030S-2, DY11-040S-2, DY11-050S-2, DY11-060S-2, DY11-080S-2, DY11-100S-2, DY11-120S-2, DY11-140S-2, DY11-030S-3, DY11-040S-3, DY11-050S-3, DY11-060S-3, DY11-080S-3, DY11-100S-3, DY11-120S-3, DY11-140S-3, DY11-060S-4, DY11-080S-4, DY11-100S-4, DY11-120S-4, DY11-140S-4, DY11-060S-5, DY11-080S-5, DY11-100S-5, DY11-120S-5, DY11-140S-5, DY11-060S-6, DY11-080S-6, DY11-100S-6, DY11-120S-6, DY11-140S-6, DY11-060FS-3, DY11-080FS-3, DY11-100FS-3, DY11-120FS-3, DY11-140FS-3, DY11-060FS-4, DY11-080FS-4, DY11-100FS-4, DY11-120FS-4, DY11-140FS-4
