ER14335J-S Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 1650 mAh · Jauch Battery

ER14335J-S Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 1650 mAh

SPECIFICATIONS:

  • Cell Size reference: 2/3 AA
  • Chemistry: Li-SoCl2
  • Nominal Voltage: 3.6V
  • Nominal Capacity (mAh): 1650 mAh
  • Max. Continuous Current: 75 mA
  • Max. Pulse Current: 150 mA
  • Operating Temperature: -60°C to +85°C
  • Storage: 30°C max
  • Weight Approx.: 12 gr.
  • ESD protection
  • UL 1642: MH62838

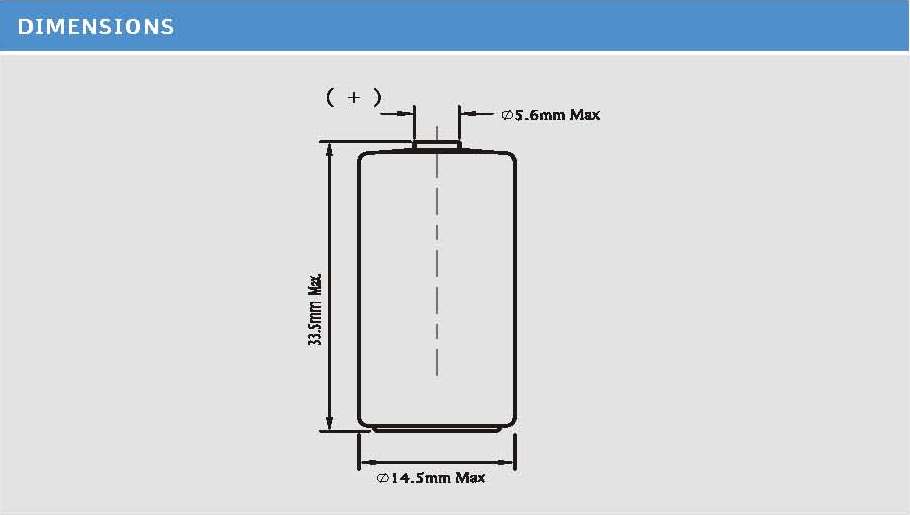

  • Max. Dimensions [mm]: 14.5 x 33.5mm

ER14335J-S
