ER14505J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 2600 mAh · Jauch Battery
ER14505J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 2600 mAh
SPECIFICATIONS:
- Cell Size reference: AA
- Chemistry: Li-SoCl2
- Nominal Voltage: 3.6V
- Nominal Capacity (mAh): 2600 mAh
- Max. Continuous Current: 100 mA
- Max. Pulse Current: 200 mA
- Operating Temperature: -55°C to +85°C
- Storage: 30°C max
- Weight Approx.: 19 gr.
- ESD protection
- UL 1642: MH62838

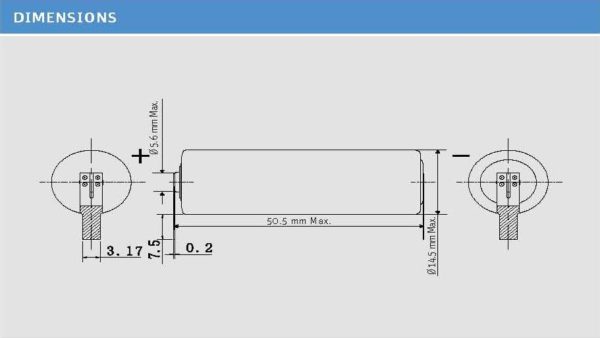

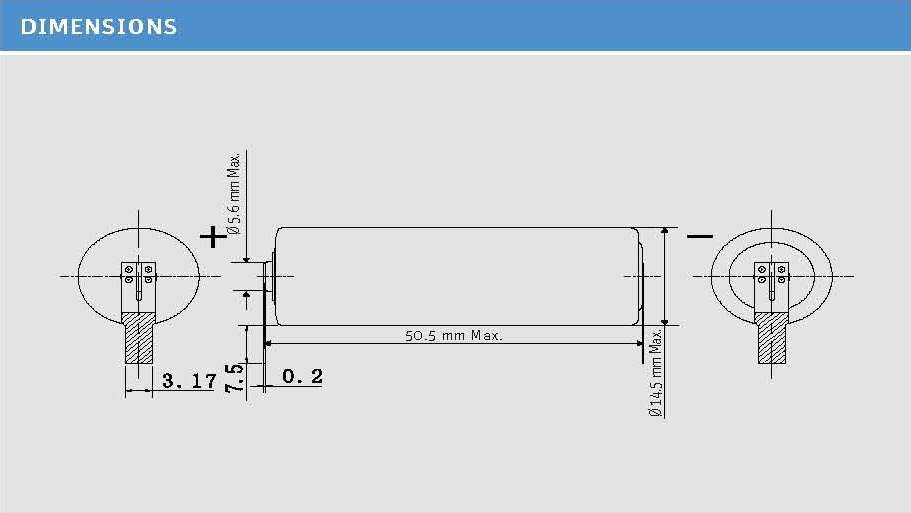

- Max. Dimensions [mm]: 14.5 x 50.5mm
- Termination Style: Solder Tab
