ER17505J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 3600 mAh · Jauch Battery

ER17505J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 3600 mAh

SPECIFICATIONS:

  • Cell Size reference: A
  • Chemistry: Li-SoCl2
  • Nominal Voltage: 3.6V
  • Nominal Capacity (mAh): 3600 mAh
  • Max. Continuous Current: 130 mA
  • Max. Pulse Current: 180 mA
  • Operating Temperature: -60°C to +85°C
  • Storage: 30°C max
  • Weight Approx.: 26 gr.
  • ESD protection
  • UL 1642: MH62838

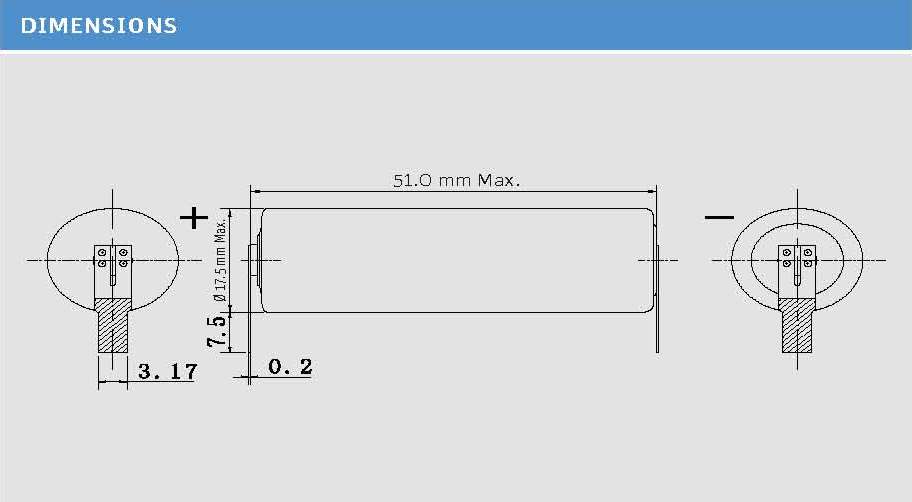

  • Max. Dimensions [mm]: 17.5 x 50.5mm
  • Termination Style: Solder Tab

ER17505J-T
