ER18505J-S Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 4000 mAh · Jauch Battery
ER18505J-S Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 4000 mAh
SPECIFICATIONS:
- Cell Size reference: A
- Chemistry: Li-SoCl2
- Nominal Voltage: 3.6V
- Nominal Capacity (mAh): 4000 mAh
- Max. Continuous Current: 130 mA
- Max. Pulse Current: 180 mA
- Operating Temperature: -60°C to +85°C
- Storage: 30°C max
- Weight Approx.: 28 gr.
- ESD protection
- UL 1642: MH62838

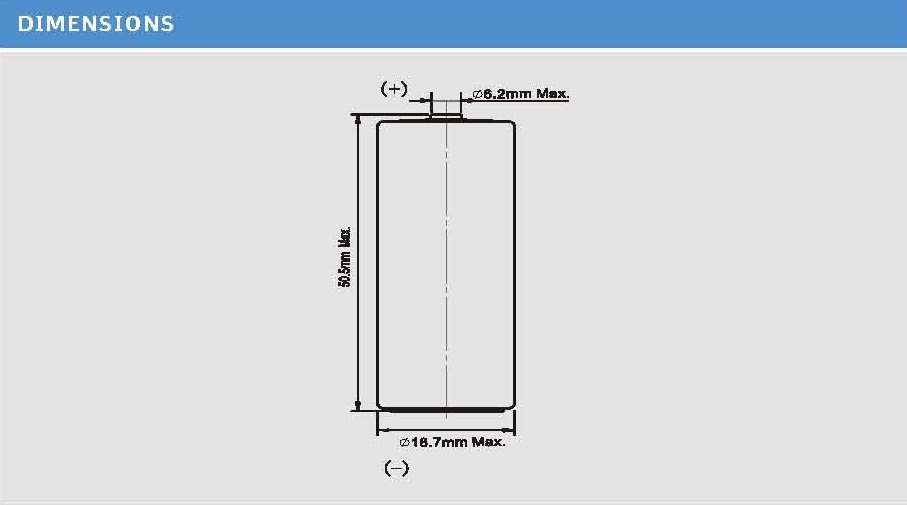

- Max. Dimensions [mm]: 18.5 x 50.5mm
