ER26500J-S Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 8500 mAh · Jauch Battery
ER26500J-S Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 8500 mAh
SPECIFICATIONS:
- Cell Size reference: C
- Chemistry: Li-SoCl2
- Nominal Voltage: 3.6V
- Nominal Capacity (mAh): 8500 mAh
- Max. Continuous Current: 150 mA
- Max. Pulse Current: 300 mA
- Operating Temperature: -60°C to +85°C
- Storage: 30°C max
- Weight Approx.: 52 gr.
- ESD protection
- UL 1642: MH62838

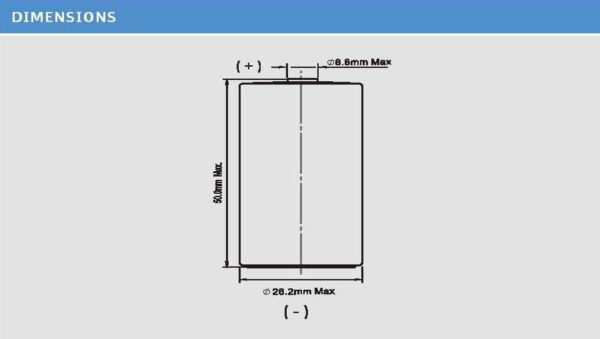

- Max. Dimensions [mm]: 26.2 x 50mm
